30-4 Motor
Motor and Drive System
30

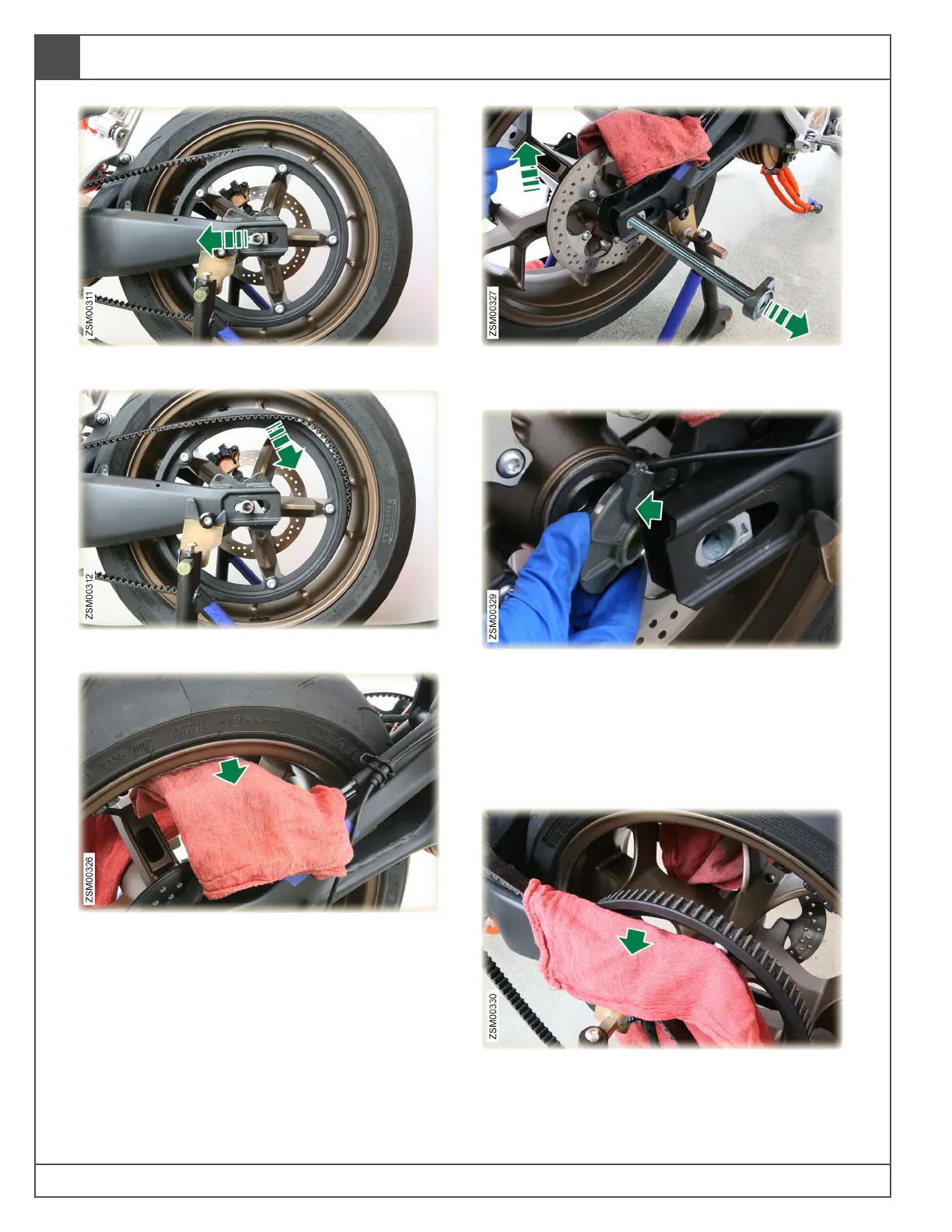

21. Slide rear axle forward.
22. Slip belt off of the rear sprocket.
23. Place rag over rear caliper to protect painted
surfaces.
24. Lift rear tire slightly and slide rear axle out of
the swing arm.
25. Raise rear tire and remove rear WSS (wheels
speed sensor) and set aside.
Note: Make sure the WSS is supported and not
straining the WSS harness.
26. Lower the rear tire carefully to keep from
damaging painted surfaces.
27. Place rag over the left side of the swingarm
between the rear sprocket and the swing arm
to protect painted surfaces.
