Motor and Drive System
Motor 30-5
30

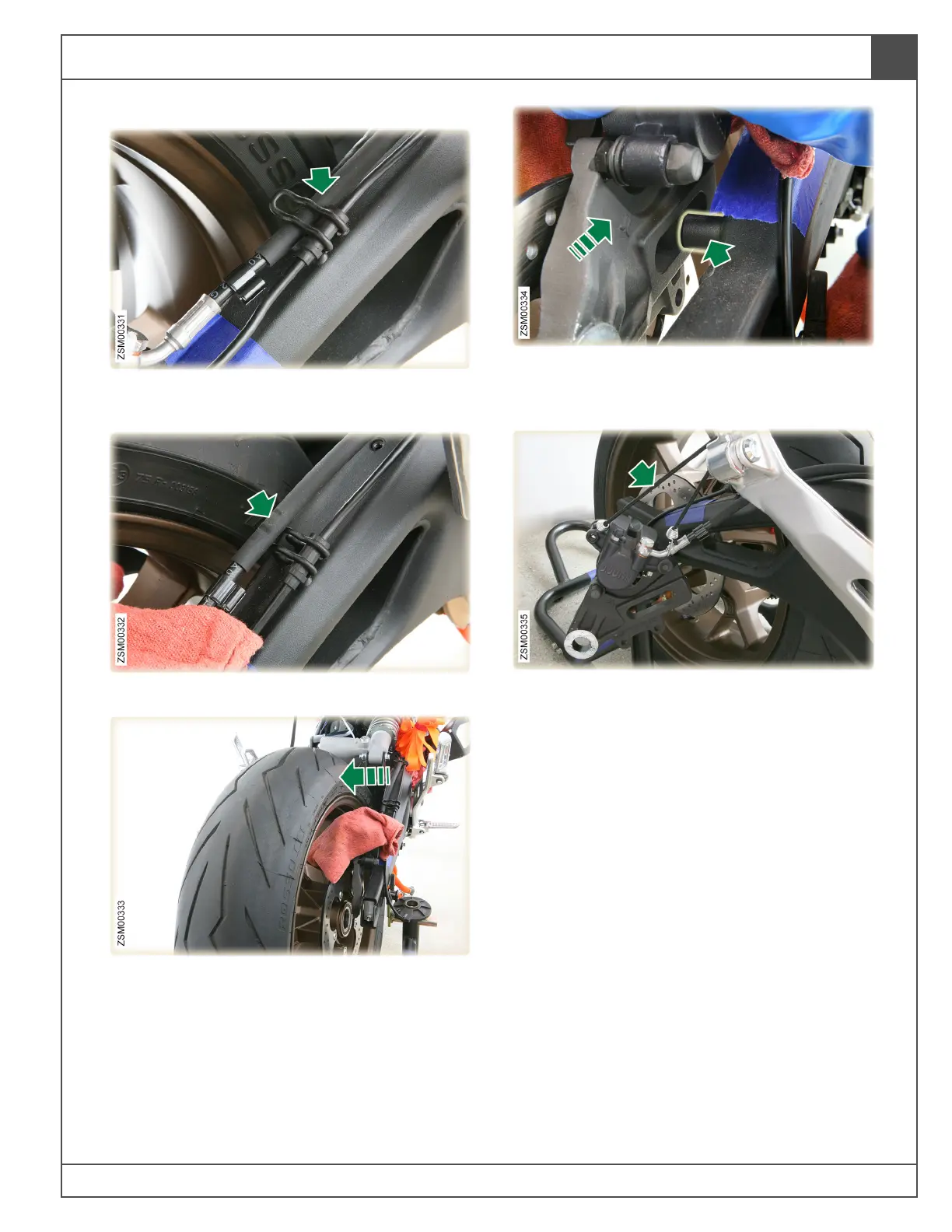

28. Roll rear tire forward.
29. Release rear brake hose from the metal
retaining clip.
30. Position the rear brake hose on top of clip.
31. Tip the top of the rear tire to the left.
32. Slide rear caliper assembly toward wheel and
slide caliper bracket off of the bracket
alignment pin.
33. Tie caliper up to the foot peg bracket.
Note: Make sure the brake caliper is hung up
and not straining the brake hose.
34. Roll the rear wheel out of the swing arm.
