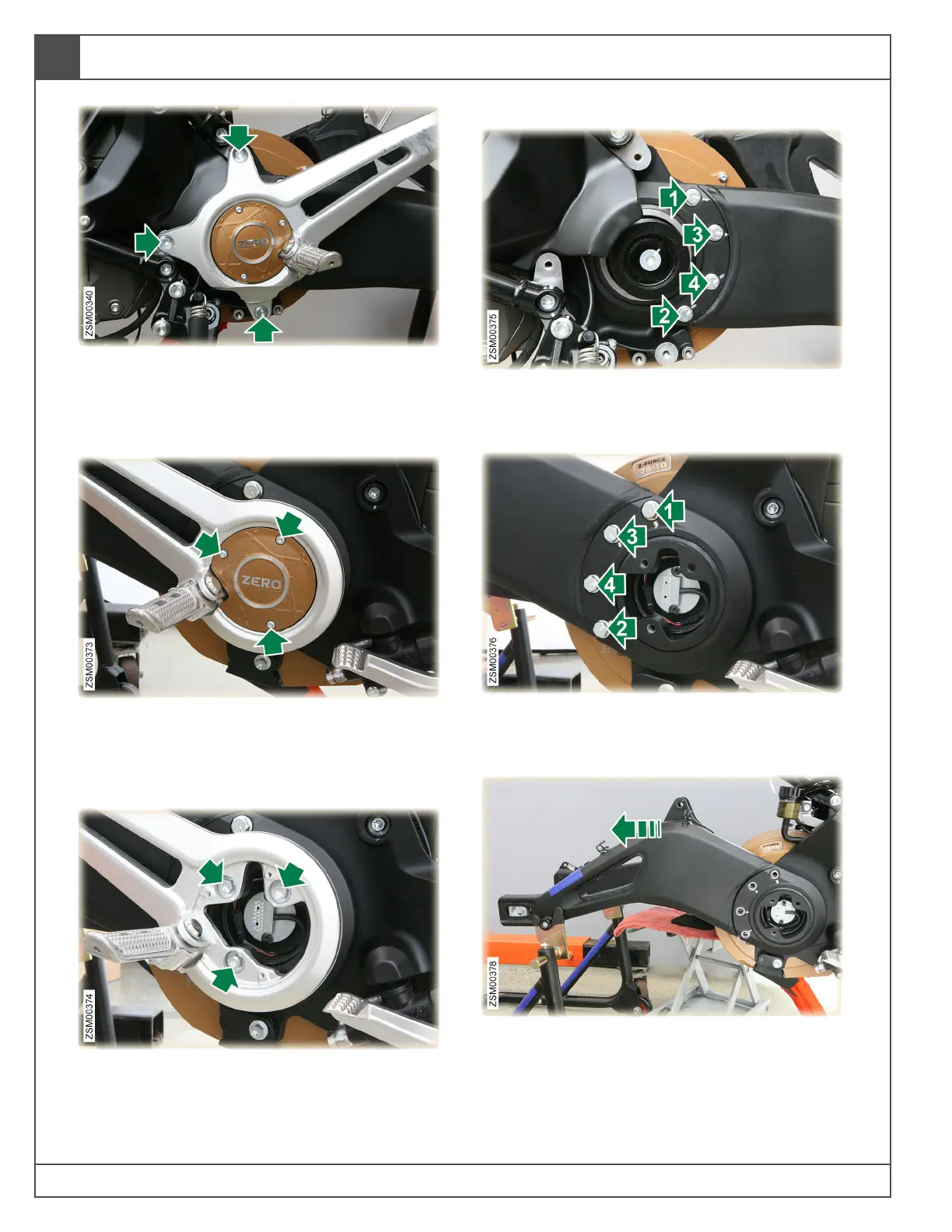

47. Remove bolts (x3) securing left foot peg
bracket to the left doubler plate. Tool: T40.
Torque: 20 lb-ft (27 Nm).
48. Remove foot peg bracket.
49. Remove bolts (x3) securing encoder cover
plate from right foot peg bracket. Tool: T20.
Torque: 2 lb-ft (2.7 Nm).
50. Remove encoder cover.
51. Remove bolts (x3) securing right foot peg
bracket to right doubler plate. Tool: T40.
Torque: 20 lb-ft (27 Nm).
52. Remove right foot peg bracket.
53. Remove bolts (x4) securing swingarm to left
outer bearing cover. Tool: 13mm socket.
Torque: 25 lb-ft (34 Nm).
54. Remove bolts (x4) securing swingarm to right
outer bearing cover. Tool: 13mm socket.
Torque: 25 lb-ft (34 Nm).
55. Remove swingarm.
