Zetor Proxima 100 User Manual

101
HYDRAULIC SYSTEM
P+11N017d

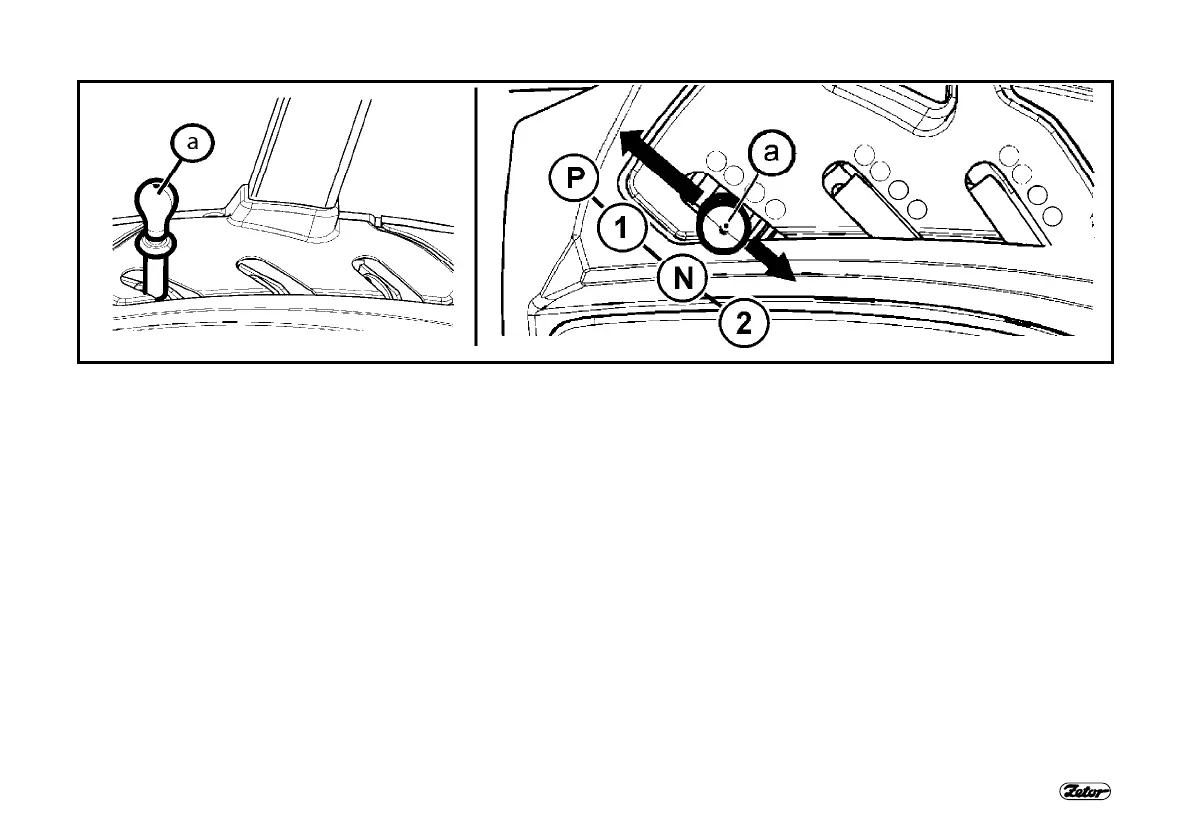

DIFFERENT FUNCTIONS OF OUTER HYDRAULIC CIRCUIT CONTROL LEVERS- ONE SECTION DISTRIBUTOR
There are four positions of the lever (a):
N -
Neutral position. Quick coupler drives (1) and (2) are closed and oil in the hydraulic appliance connected is blocked. Lever
(a) is locked in this position.
1 -
Pressure in quick coupler (1). Quick coupler (2) is connected with the drain.
2 -
Pressure in quick coupler (2). Quick coupler (1) is connected with the drain. Lever (a) is locked in this position.
P -
Floating position. Both quick couplers (1) and (2) are connected with the drain and oil is free to flow in both directions.
Lever (a) is locked in this position.

Zetor Proxima 100 Specifications

General

Engine Power	100 hp
Fuel Tank Capacity	150 L
Power (hp)	100 hp
Displacement (L)	4.156 L
Rated speed (rpm)	2200 rpm
Max. speed (km/h)	40 km/h
Hydraulic System	Open center
Engine Type	4-cylinder diesel
