31
ACQUAINTANCE WITH TRACTOR
C146 P11NH127a

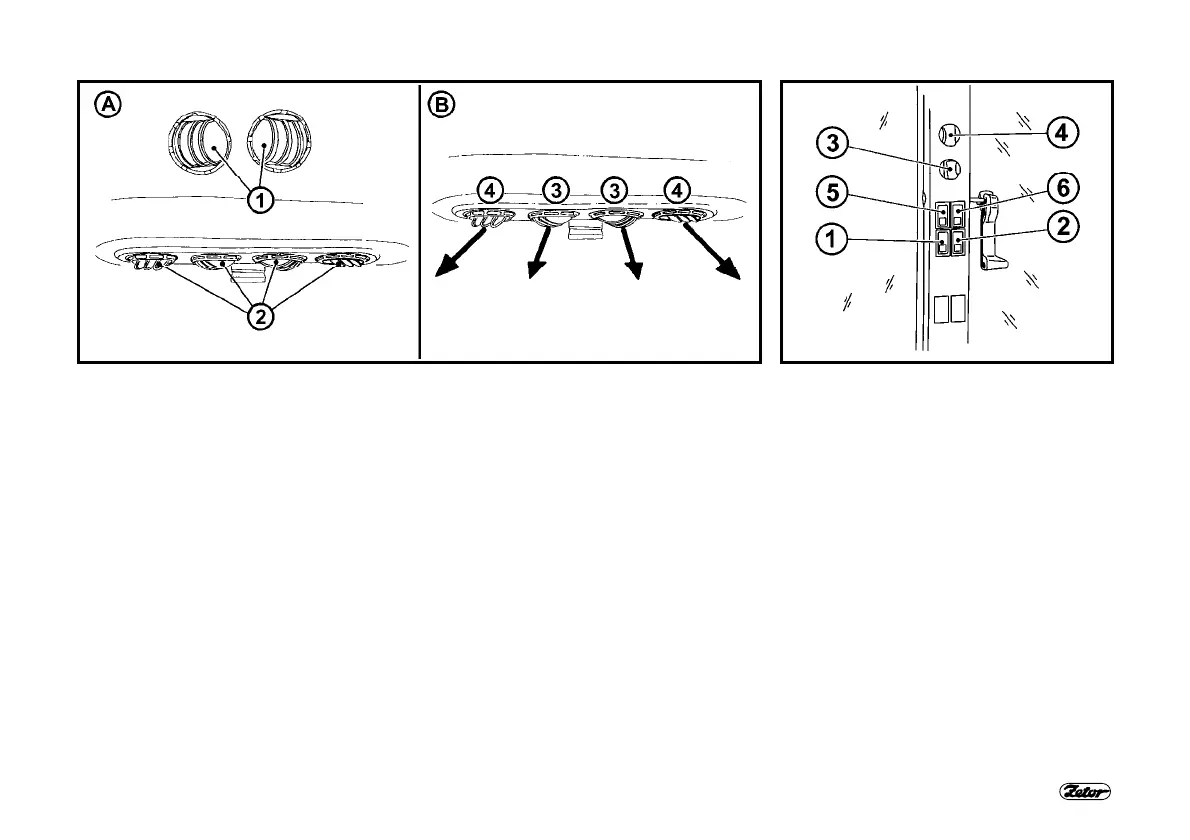

HEATING AND AIRCONDITIONING OUTLETS
A - Adjustable outlets of heating (2) and air-conditioning (1).
DEFROSTING THE FRONT WINDSHIELD
B - For fast defrosting of the front windshield direct the middle outlets of heating (3)
with angle of ca 45° towards the windshield. Direct the side outlets (4) with angle
of ca 45° towards the cab corners.
After defrosting of the front windshield, direct the side outlets to towards the side
glasses of the doors and defrost the glasses step by step. After defrosting, the
outlets should be adjusted to such direction so that air could not directly blow to
the driver but down to driver’s legs.
CONTROL PANEL ON RIGHT CAB
PILLAR
1 - switch of front working lights on cab
roof
2 - switch of rear working lights on cab
roof
3 - rear window wiper switch
4 - two-position switch of the windscreen
wiper and washer
5 - *rear mirrors heating switch
6 - *rear window defroster switch
