46
ACQUAINTANCE WITH TRACTOR
G153 C172 C173

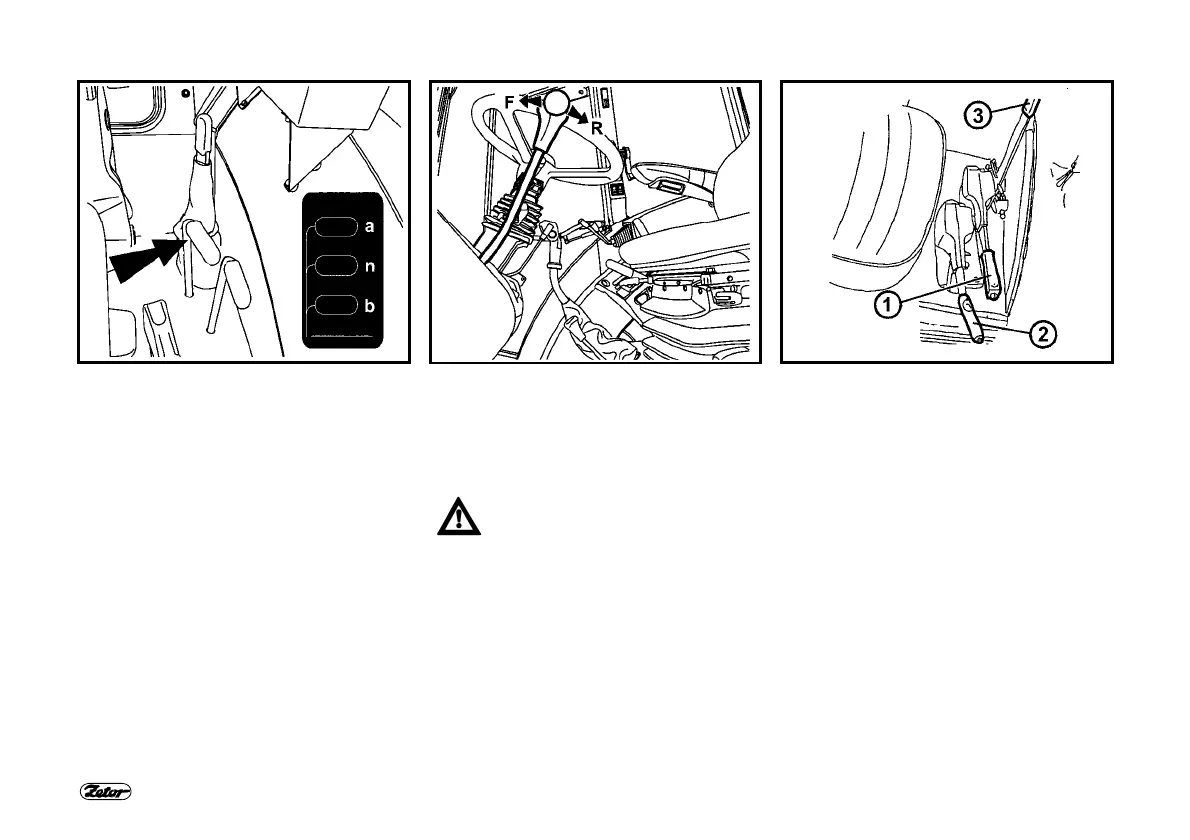

SHIFTING LEVER OF CREEPING
SPEED REDUCTOR
a -
Creeping speed reductor
n -
Neutral
b -
Normal speed
Shifting is made when the tractor stops.
REVERSOR SHIFTING LEVER
F -
Forward drive; lever in forward
position
R -
Backward drive; lever in back-
ward position
The reversor lever has no neutral
position. Therefore neutral must
be shifted by the main shifting
lever for stopping the tractor.
PARKING BRAKE LEVER, PTO
SHAFT CONTROL LEVER AND PICK
UP HITCH CONTROL LEVER
1. Control lever of PTO shaft clutch
2. Parking brake lever
3. Pick up hitch control lever
