85
PTO DRIVE OF AGRICULTURAL MACHINES
E356
H355 E358
FRONT OUTPUT SHAFT ZUIDBERG

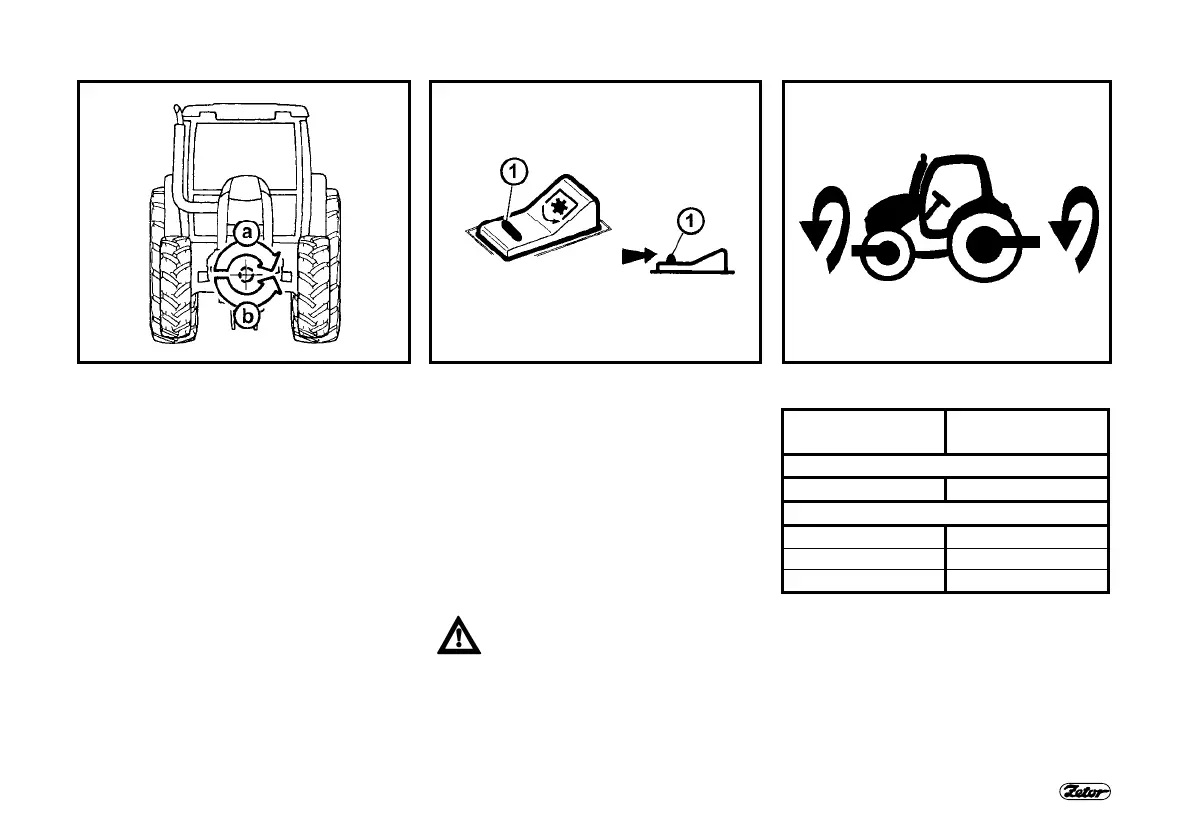

The front output shaft is equipped with a
fixed 6- or 21-spline terminal and its
speed is 1,000 rpm only.
The tractor may be equipped with an
optional front output shaft with both
directions of rotation:
a -
in direction of rotation of the
engine (standard)
b -
against direction of rotation of the
engine (optional)
ENGAGEMENT OF THE FRONT
OUTPUT SHAFT ZUIDBERG
The front output shaft Zuidberg can be
engaged and disengaged using a switch
on the dashboard. Activation of the
switch is indicated by the illuminated
symbol on the switch.
The switch is fitted with a mechanical
lock (1) against unintentional switching
on. When activating the switch, depress
also the lock (1) in direction of the arrow.
The switch shall be off when
starting the engine.
MAXIMUM TRANSFERRED POWER
Output shaft Transferred
power
front (Zuidberg)
1,000 rpm 45kW*
rear
1,000 rpm full engine power
540 rpm full engine power
540E rpm full engine power
*In case of a transfer of power without
shocks, the value of the transferred
power may be increased to 50kW.
