22
ACQUAINTANCE WITH TRACTOR
FH12N020.tif

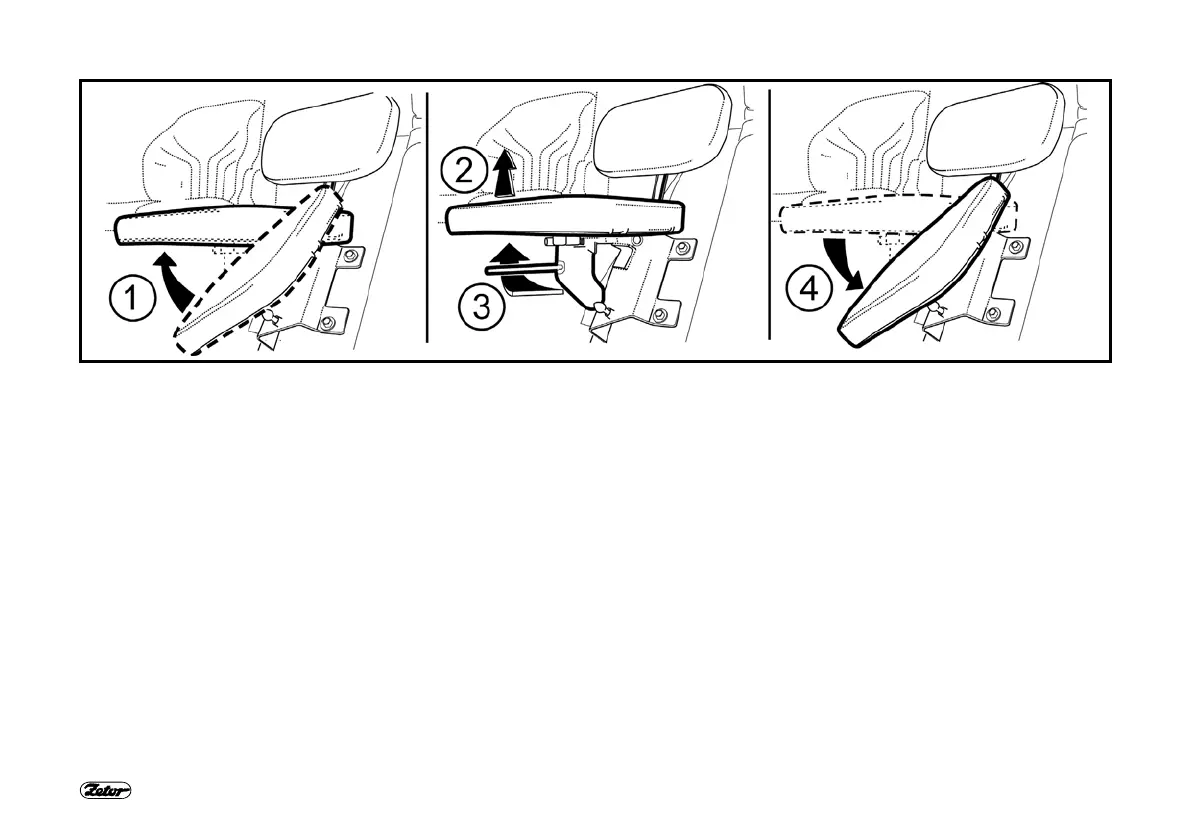

PASSENGER´S SEAT
Passenger´s seat is tiltable and placed on the left mudguard of the cabin.
SEAT TILTING OUT
Passenger´s seat to be tilted out in the direction of an arrow (1) upward. Locking of the seat is done automatically
SEAT TILTING
Lift the passenger´s seat in the direction of an arrow (2), pull the lever (3) to the direction of the driver´s seat, tilt the seat in the di-
rection of an arrow (4).
