166
MAINTENANCE INSTRUCTIONS
E723a E729 E730
CHECK AND REPLACEMENT OF OIL IN
GEARBOX, AXLE DRIVE AND REAR
AXLE PORTALS

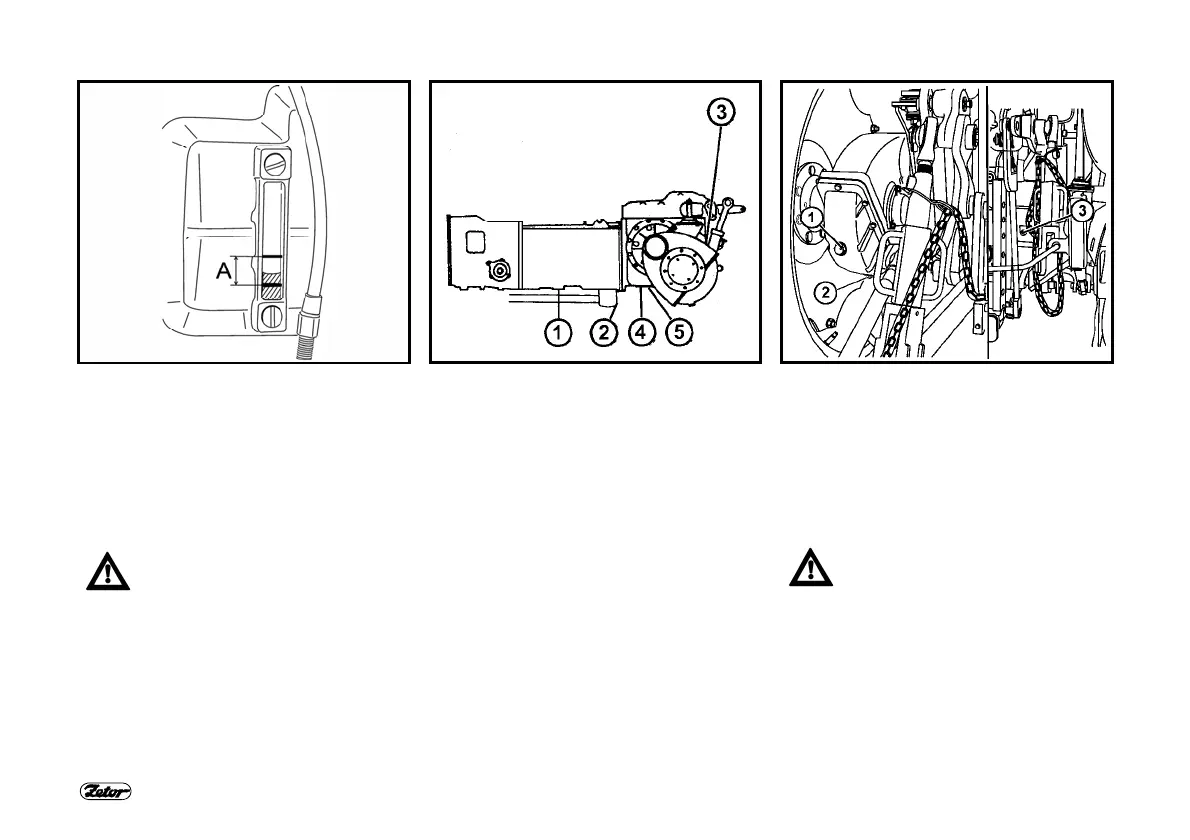

Oil level in the gear mechanisms is
checked oil gauges, whitch is located in
left rear part of the gearbox case.
A - Standard oil filling
Carry out checks when the
engine is stopped.
DRAINAGE AND INSPECTION HOLES
1. Drain plug of the gear mechanism.
2. Oil drain plug from the outlet for the
front driving axle.
3. * Brake chamber inspection screw.
4. Plug for drainage of oil from the axle
drive case.
5. Drain plugs of the left and right brake
chambers.
1. * Inspection and oil filling screw of the
axle shaft case (applicable for stan-
dard adjustment of the portal).
2. Plug for draining of oil from the axle
shaft case.
3. *Inspection screw of the brake cham-
ber.
* After screwing out the inspec-
tion screw the level of oil shall
reach lower edge of the inspec-
tion hole.
