Zetor Proxima 100 User Manual

41
ACQUAINTANCE WITH TRACTOR
C159 C160 C161

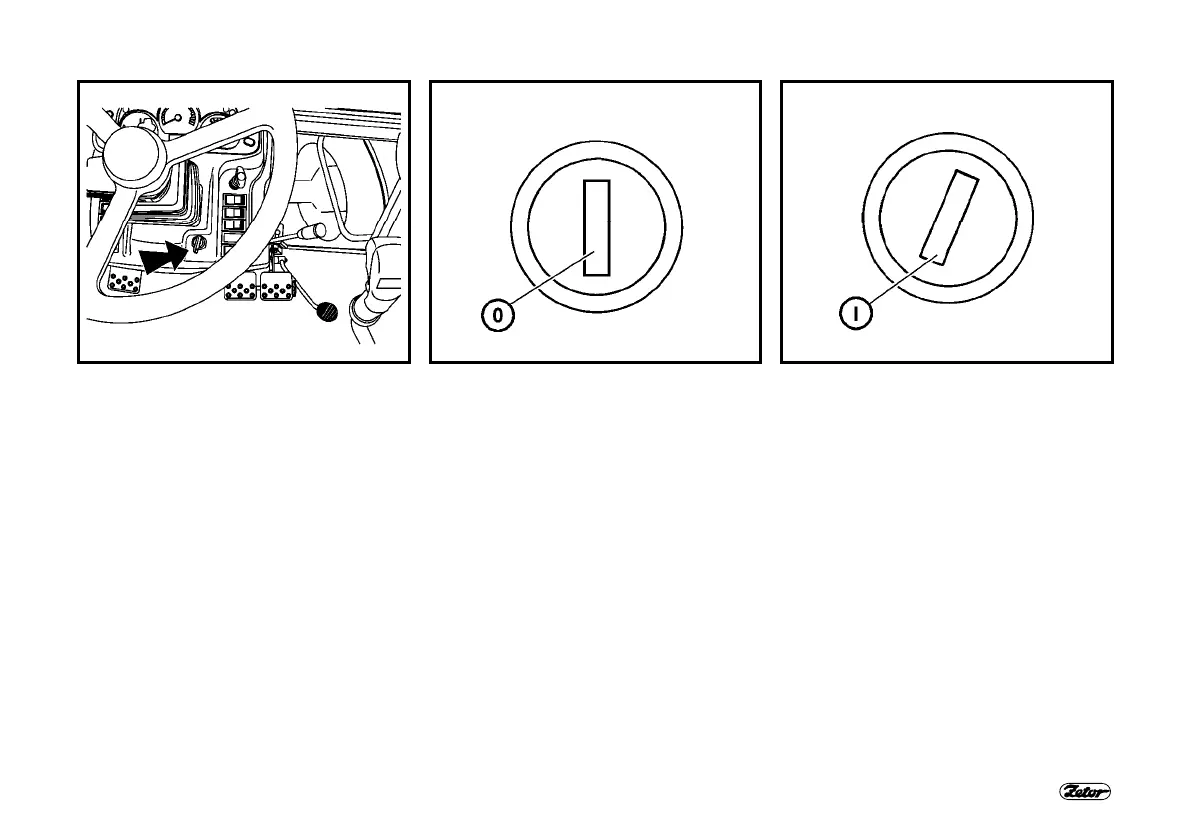

IGNITION BOX
The ignition box is located on the
dashboard, see the arrow.
KEY IN "0" POSITION
All electrical appliances controlled by the
key switch are disconnected. The key
can be removed.
KEY IN "I" POSITION
All electrical appliances controlled by the
key switch are connected except of
starter motor. The key is located in this
position when running the engine.

Zetor Proxima 100 Specifications

General

Engine Power	100 hp
Fuel Tank Capacity	150 L
Power (hp)	100 hp
Displacement (L)	4.156 L
Rated speed (rpm)	2200 rpm
Max. speed (km/h)	40 km/h
Hydraulic System	Open center
Engine Type	4-cylinder diesel
