Zetor Proxima 100 User Manual

117
WHEEL TREAD CHANGE
C505

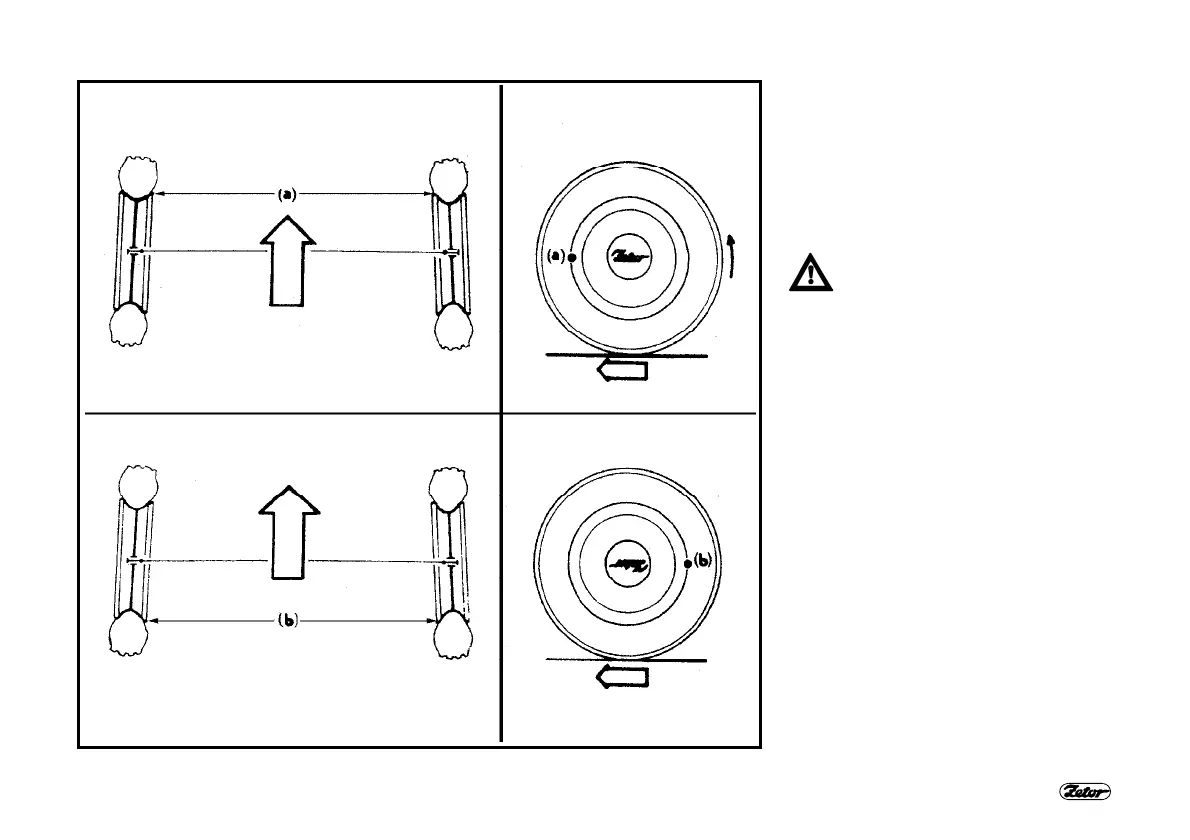

FRONT WHEEL TOE-IN
Value of front wheel toe-in measured at
the rim at the tractor:
 with non-driven axle 2 to 6 mm
 with driving axle 0 to 4 mm
Toe-in „S“ is determined by the
difference of measured values: S = b - a.
Before toe-in checking it is
necessary to check and even-
tually adjust the play of front
wheel bearings and inflate the
front tires to the prescribed
pressure.
Front wheel toe-in measurement
is executed on rims of wheels.

Zetor Proxima 100 Specifications

General

Engine Power	100 hp
Fuel Tank Capacity	150 L
Power (hp)	100 hp
Displacement (L)	4.156 L
Rated speed (rpm)	2200 rpm
Max. speed (km/h)	40 km/h
Hydraulic System	Open center
Engine Type	4-cylinder diesel
