131
ELECTRIC INSTALLATION
FH12N029

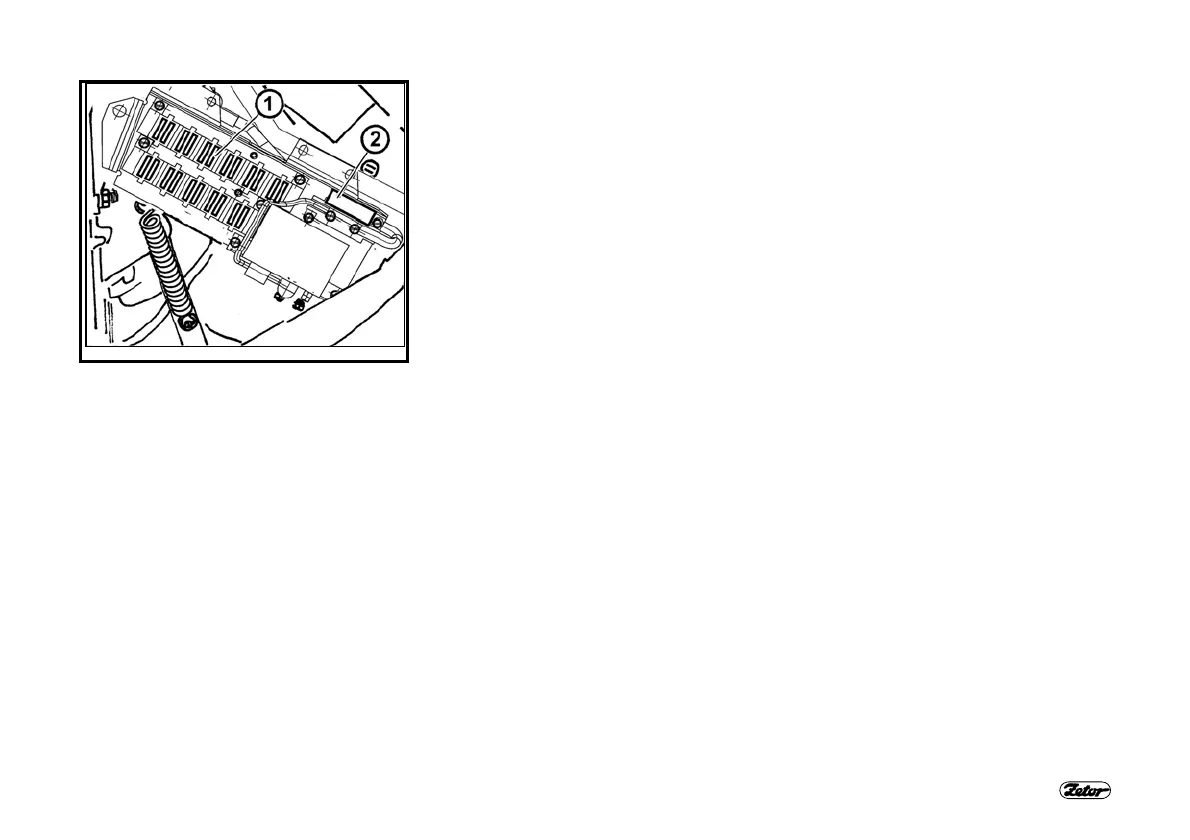

FUSE BOX
It is accessible after removal of the left
cover of the steering bracket.
The blade-type fuses (1) shall be re-
placed for new ones having the same
rating. In case of repeated blowing seek
an authorised repair shop.
Rating of the strip-type fuse (2) is 80 A.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Zetor Proxima 100 and is the answer not in the manual?

Zetor Proxima 100 Specifications

General IconGeneral
Engine Power100 hp
Fuel Tank Capacity150 L
Power (hp)100 hp
Displacement (L)4.156 L
Rated speed (rpm)2200 rpm
Max. speed (km/h)40 km/h
Hydraulic SystemOpen center
Engine Type4-cylinder diesel
