134
ELECTRIC INSTALLATION
G611
CHECK OF ADJUSTMENT OF LIGHTS ON THE ROOF OF THE CABIN

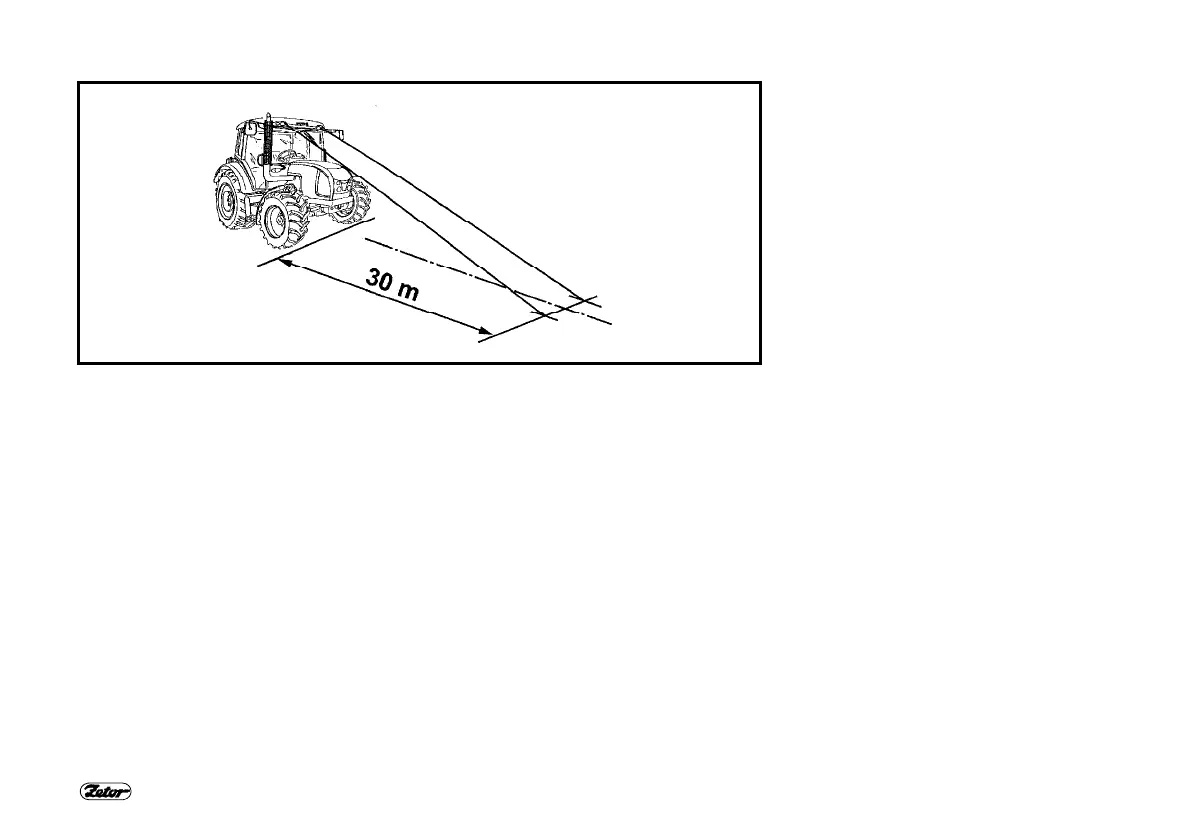

In vertical direction any point of the illuminated area within plane of the road to the left
from the longitudinal vertical plane passing through the headlight centre shall not be
more than 30m from the front outline of the tractor.
In horizontal direction the headlight beams shall be parallel with the longitudinal axis
of symmetry of the tractor.
Carry out checks of adjustment of the headlamps at unladen weight of the tractor.
The front roof headlights may be used during traffic on ground roads only if there is a
front-carried mechanism is coupled to the tractor or an equipment covering the main
headlights (in the mask of the tractor).
