Zetor Proxima 100 User Manual

24
ACQUAINTANCE WITH TRACTOR

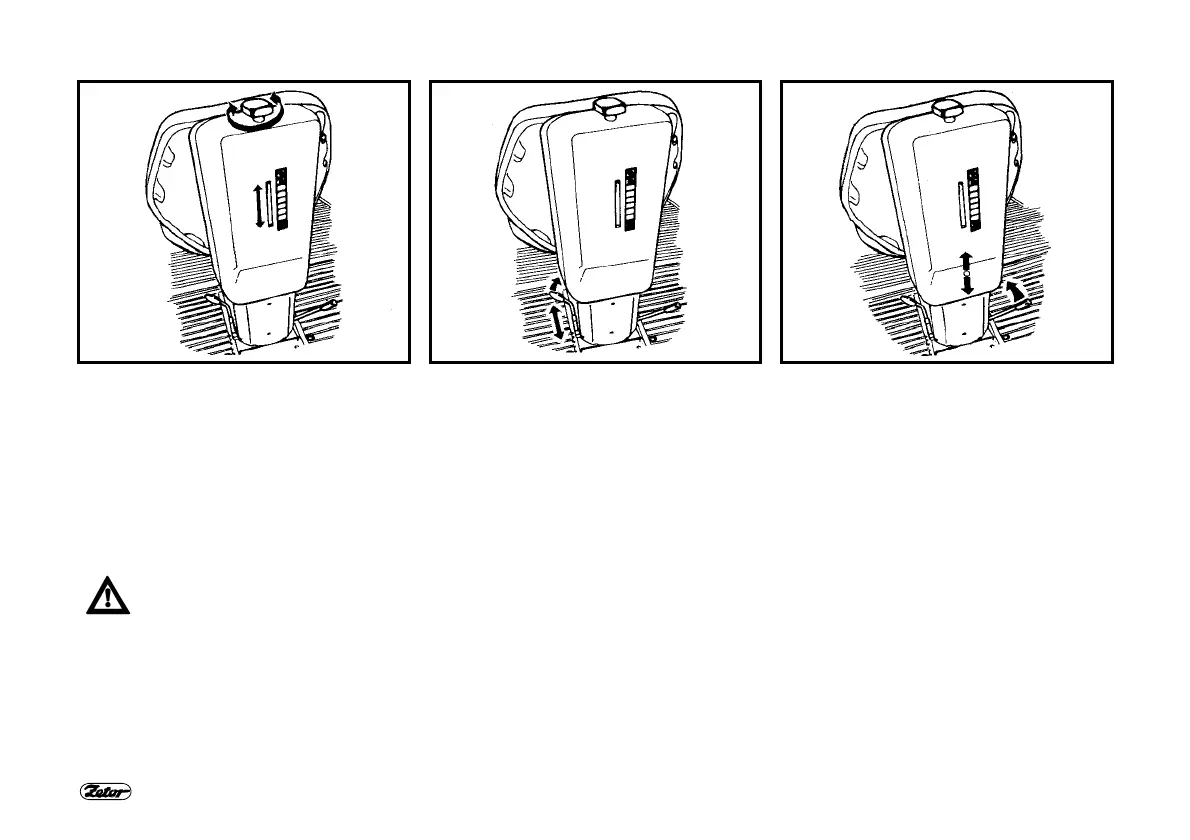

C131 C132 C133
DRIVER’S SEAT Mars Svratka
ADJUSTMENT FOR DRIVER’S
WEIGHT
The suspended seat is adjustable for
driver’s weight from 50 up to 120 kg. Ad-
justment is done by turning of square
knob. Weight indicator is located in the
slot of rear seat cover. Spring stroke is
120 mm.
Do not adjust the seat when driv-
ing!
Danger of accident!
LONGITUDINAL ADJUSTMENT
The seat can be longitudinally adjusted
within range ± 75 mm (11 positions) after
unlocking of left hand side lever.
VERTICAL ADJUSTMENT
Vertical seat adjustment is done by the
right hand side lever; from the middle
position to two marginal positions within
range ± 30 mm.

Zetor Proxima 100 Specifications

General

Engine Power	100 hp
Fuel Tank Capacity	150 L
Power (hp)	100 hp
Displacement (L)	4.156 L
Rated speed (rpm)	2200 rpm
Max. speed (km/h)	40 km/h
Hydraulic System	Open center
Engine Type	4-cylinder diesel
