Ziehm Imaging, Inc. QUANTUM User Manual

Section 11.0
MAN 06–0017H
ZIEHM QUANTUM User’s Manual Page 170 of 220

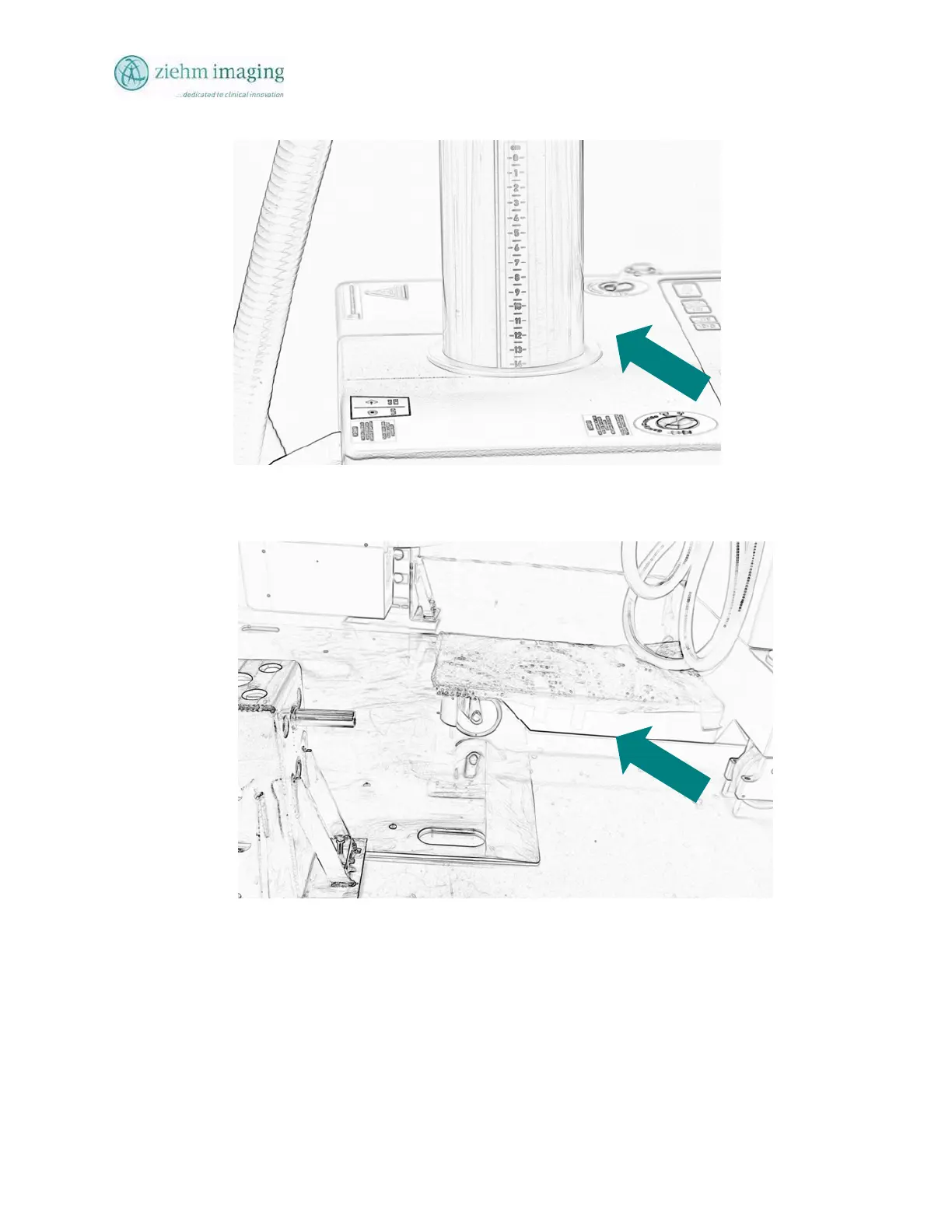

• Power up the C-Arm and adjust the vertical height to 14cm. Example Fig 11.2
Figure 11.2
• Slowly but firmly push the front C-Arm wheels up the base plate ramp while
guiding the generator assembly to the generator cradle bracket Example Fig 11.3.
Figure 11.3
