Section 11.0
MAN 06–0017H
ZIEHM QUANTUM User’s Manual Page 173 of 220

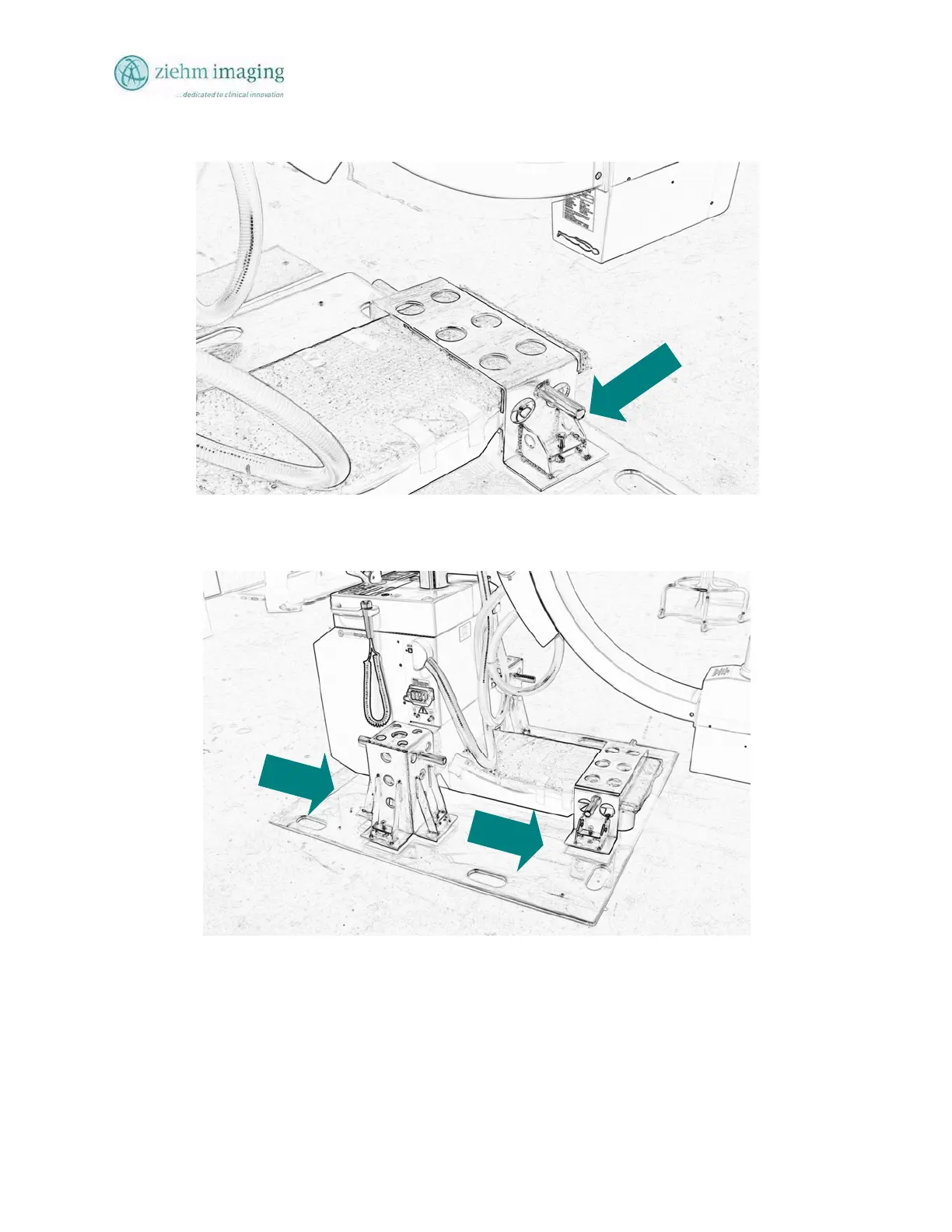

• Position the bracket with stencil #2 over the front wheel assembly. Example Fig
11.8
• Tighten the 2 bolts to secure the front wheel bracket to the floor mounting plate an
d
the 3 bolts to secure the left and right wheel brackets to the floor mounting plate.
Example Fig 11.9
