Section 11.0

MAN 06–0017H

ZIEHM QUANTUM User’s Manual Page 172 of 220

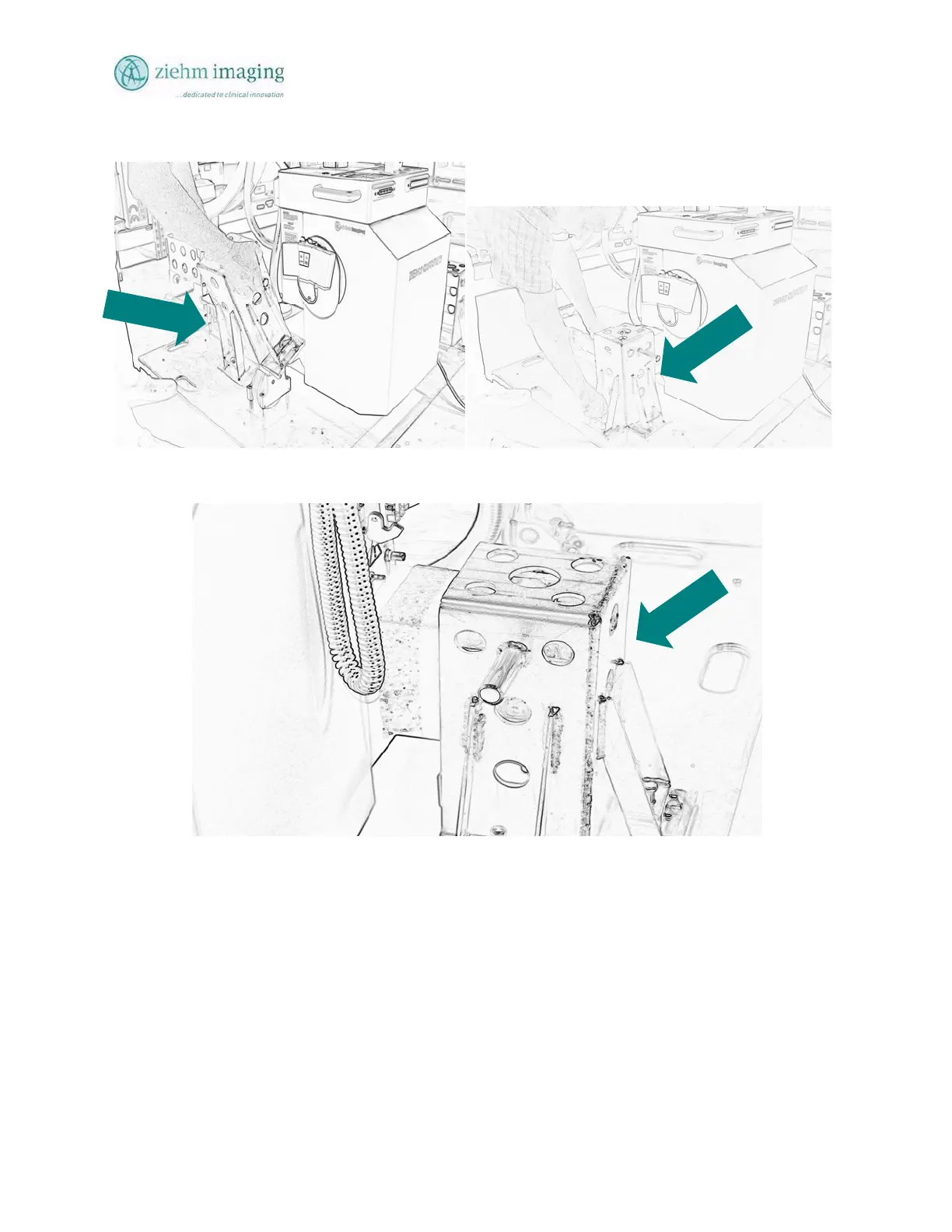

• Position the bracket with stencil # 4 over the left wheel hub assembly. Example Fig

11.6

• Position the bracket with stencil #3 over the right wheel hub assembly. Example Fig

11.7
