Section 11.0
MAN 06–0017H
ZIEHM QUANTUM
Us
er’s Manual
Page 176 of 220
•

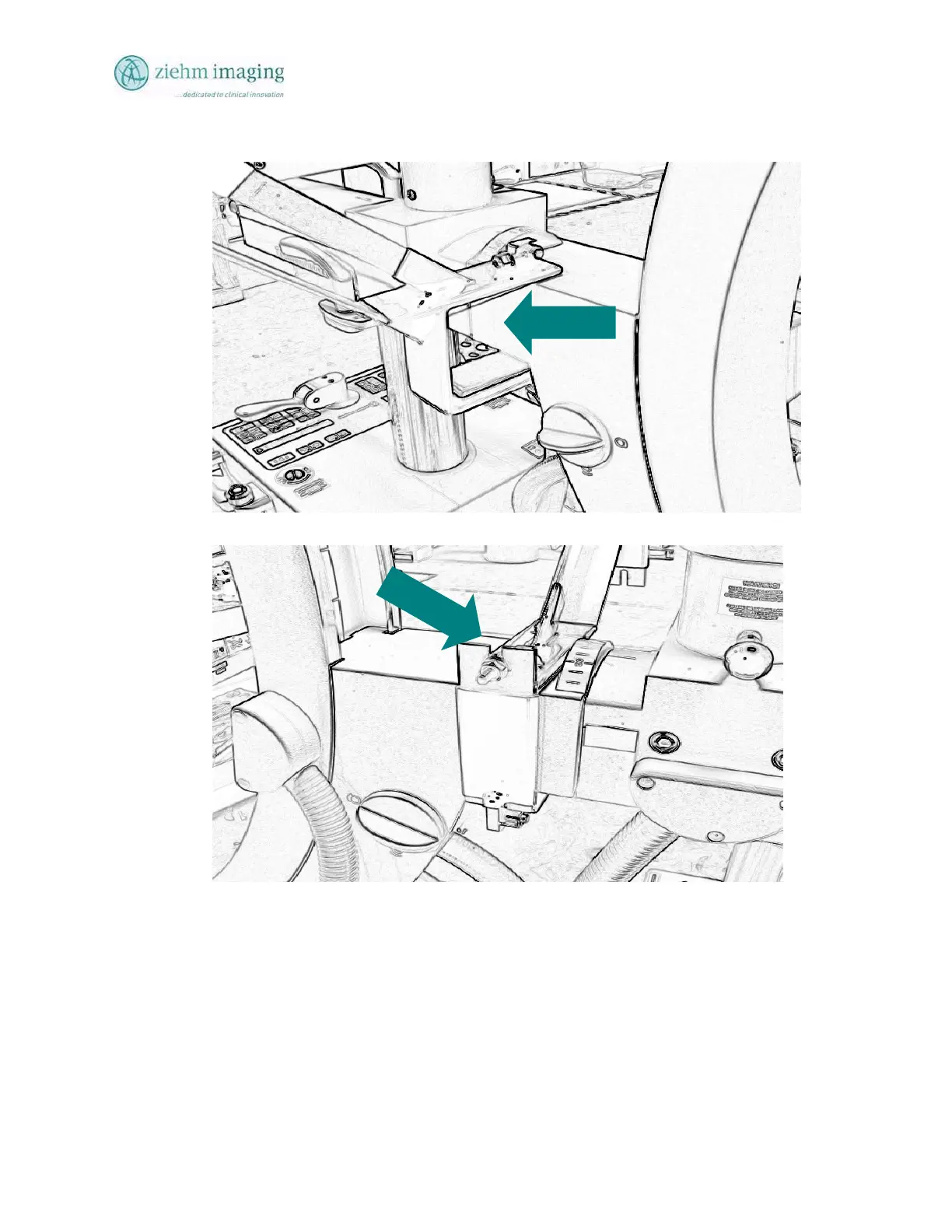

Slip the Arm Support Shipping lock onto th
e horizontal arm assembly. Example Fig
11.14
•
Flip up the lever and partially tight
en into position. Example Fig 11.15
175
