Section 11.0

MAN 06–0017H

ZIEHM QUANTUM User’s Manual Page 177 of 220

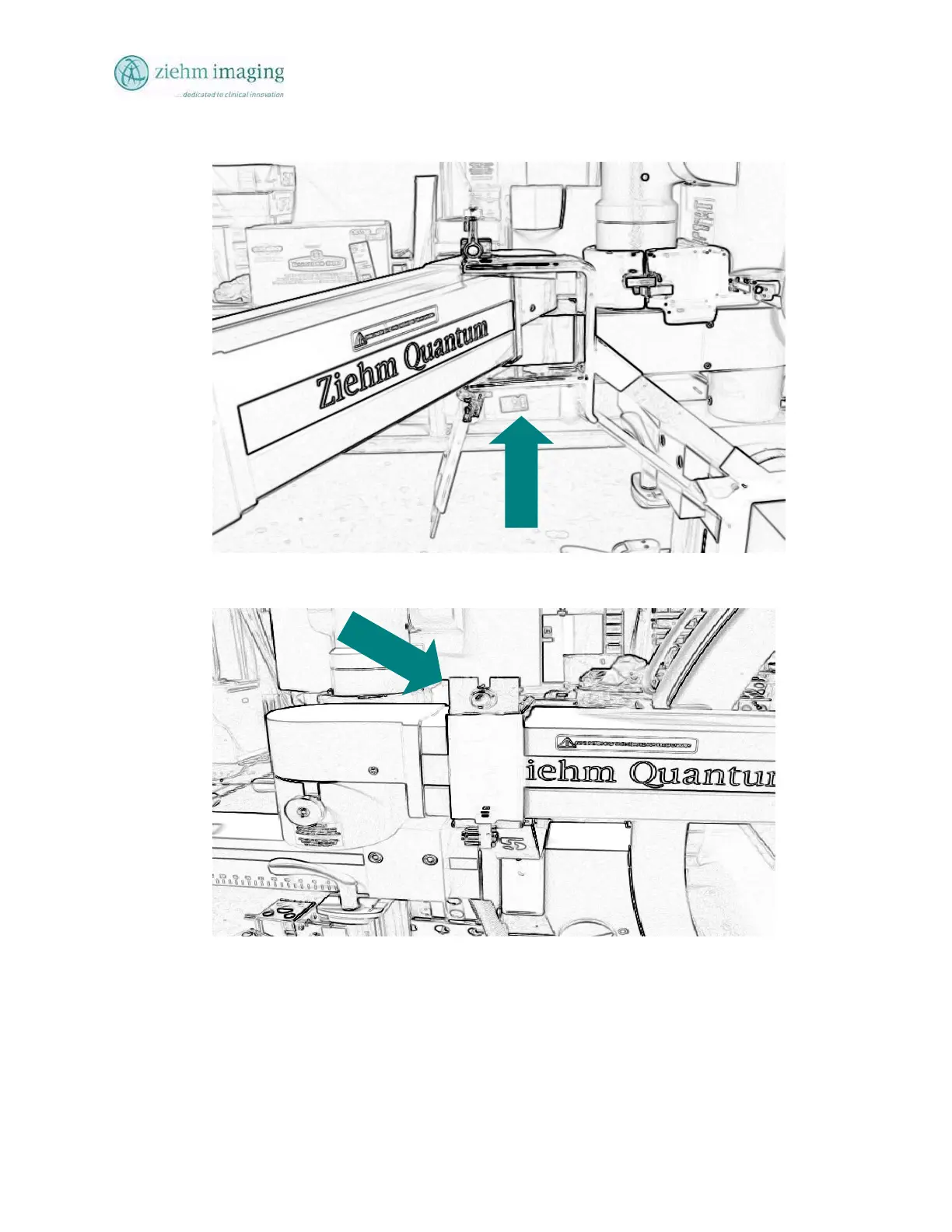

• Slowly rotate the monitor arm into the top portion of the Arm Support Shipping

lock. Example Fig 11.16

• Flip up the lever and secure into position and tighten bolt from step 7 above.

Example Fig 11.17

• For removal instructions perform the above steps in reverse order starting with the

shipping locks and then the floor brackets.
