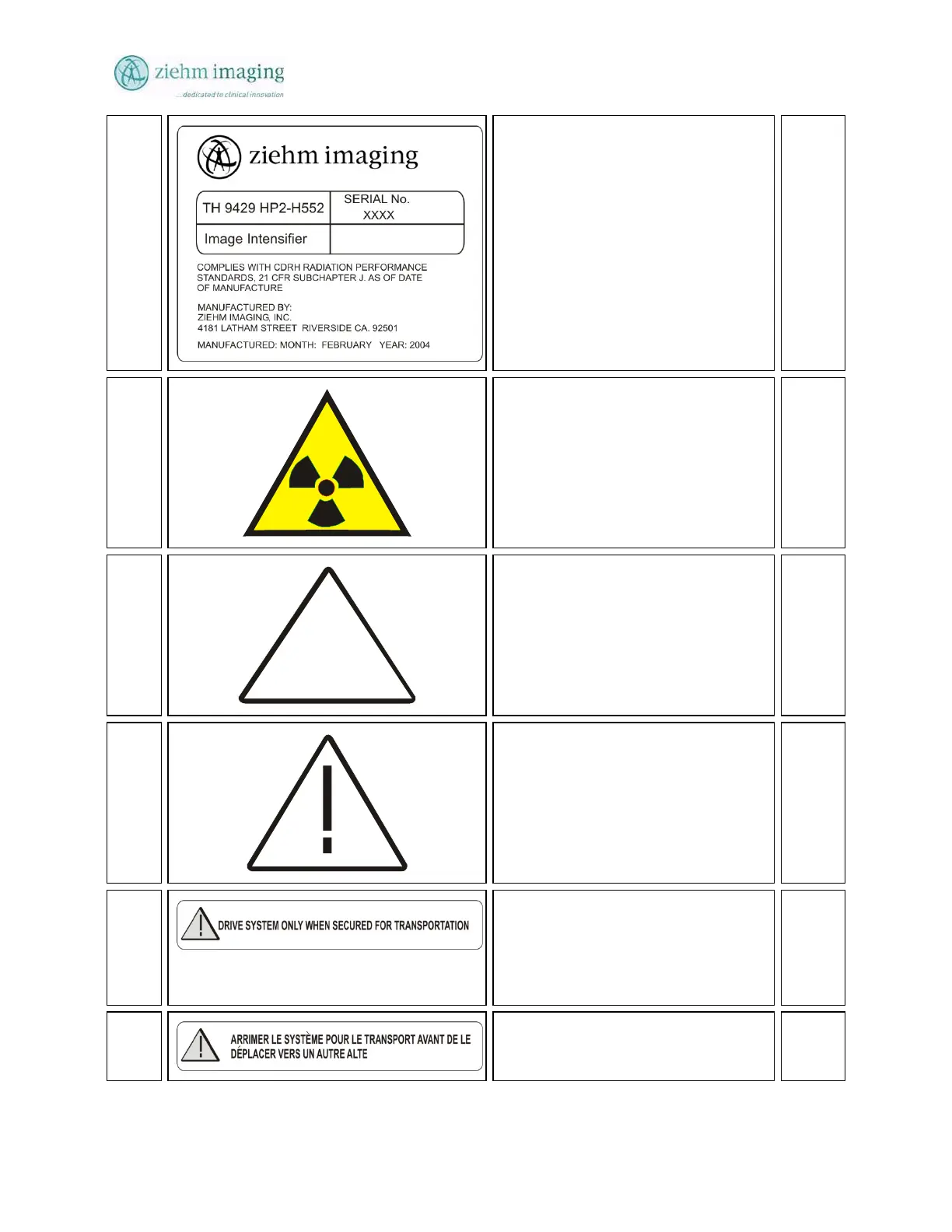

7
Image Intensifier/ Image
receptor.
Located on the image receptor just
under the mounting bracket for the
C-Profile.
1
8
Radiation Warning
Located on Generator
Background is Yellow in color
1
9
KEEP
OUT
RADIATION
CONTROL AREA 1M
CIRCLE DISTANCE 4M
Top Desk
Located on top of the Mobile stand
1
10
Please observe accompanying
documents On side of mobile stand
below XPO cable
1
11
Transport warning 11
Located on support arm monitor
bracket and desk top of mobile
stand cover
6
12
If sold in Canada this label must
be attached next to Number 11
6
