Section 6.0
MAN 06–0017H ZIEHM QUANTUM User’s Manual Page 62 of 220

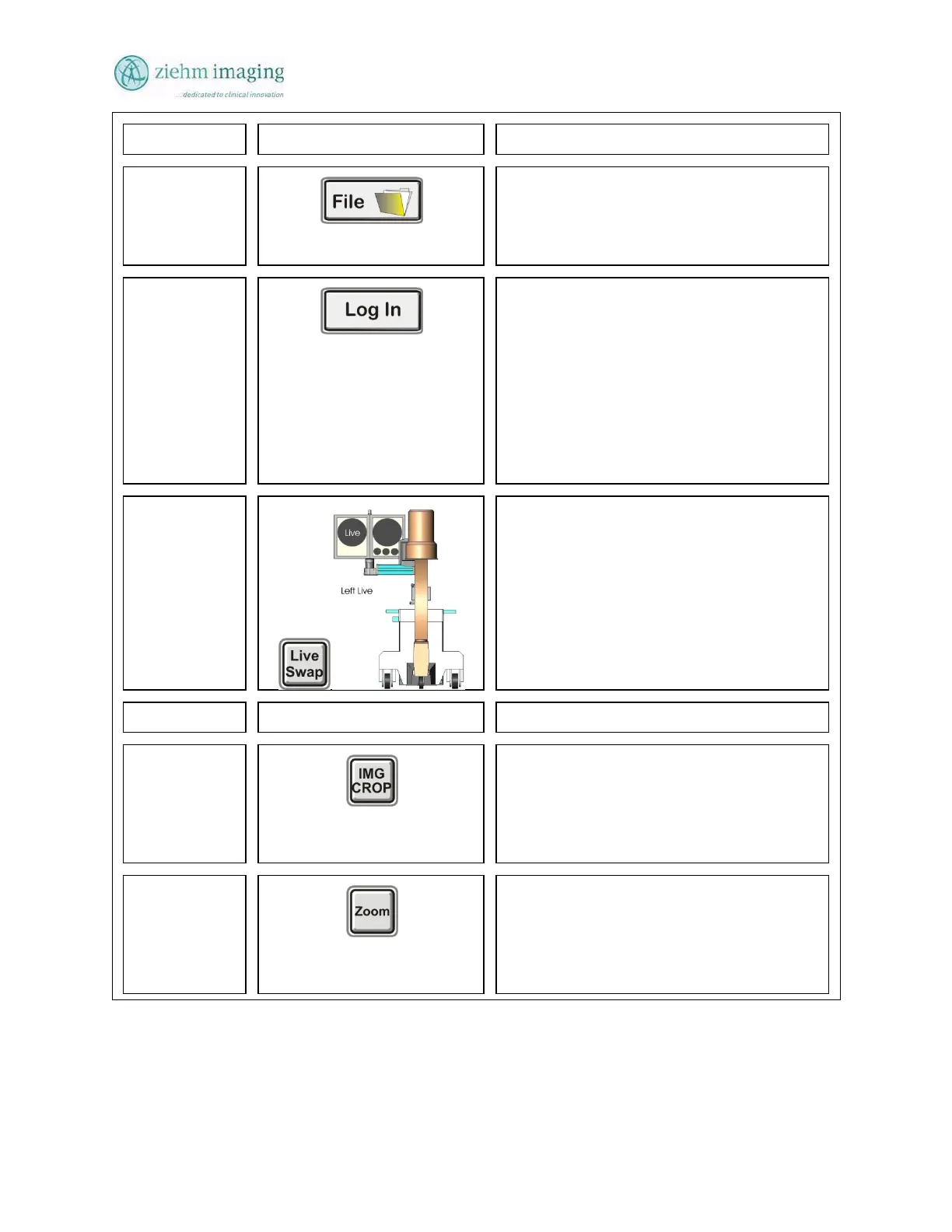

Control No. Symbol(s) Description
Button 3
Patient File
Activates the patient database screen for
review, DICOM print /send, Delete complete
patient file, etc.
Button 4
Log In
Activates the Log In Screen for password
protection for storing and send images from
patient file to external storage devices, i.e.
DICOM server/printers, USB memory sticks,
or DVD writer.
Provides security of patient file records
(images) from being removed without
permission (HIPAA)
Button 5 Live Swap
Activates the Live monitor swap function.
This simply moves the live functions from
the left to the right monitor. The main use of
this function is to allow the outer monitor to
be the live monitor to avoid interference with
the Image intensifier when viewed from the
doctors position
Button 6
Future Function Location Future
Button 7
Image Crop
Activates the post processing function.
Several additional buttons will be displayed
on the touch screen to allow the operator to
crop the image.
Button 8
Zoom
Pressing the Zoom button will open a digital
magnification window on the left monitor
and display on the right monitor the
magnified image.
To Next Page
