External
Interface
(Z8601,Z8611)
1--------
MACHINE CYCLE
--------1
CLOCK
PO
X
As-A15
X
P1
X
Ao-A7
X
Do-D7 OUT
X
LJ
'---
\
I
R/W
\
/
________
~x~
____________________
~x~
__
'""I
,a---------
WRITE CYCLE
--------1'
I

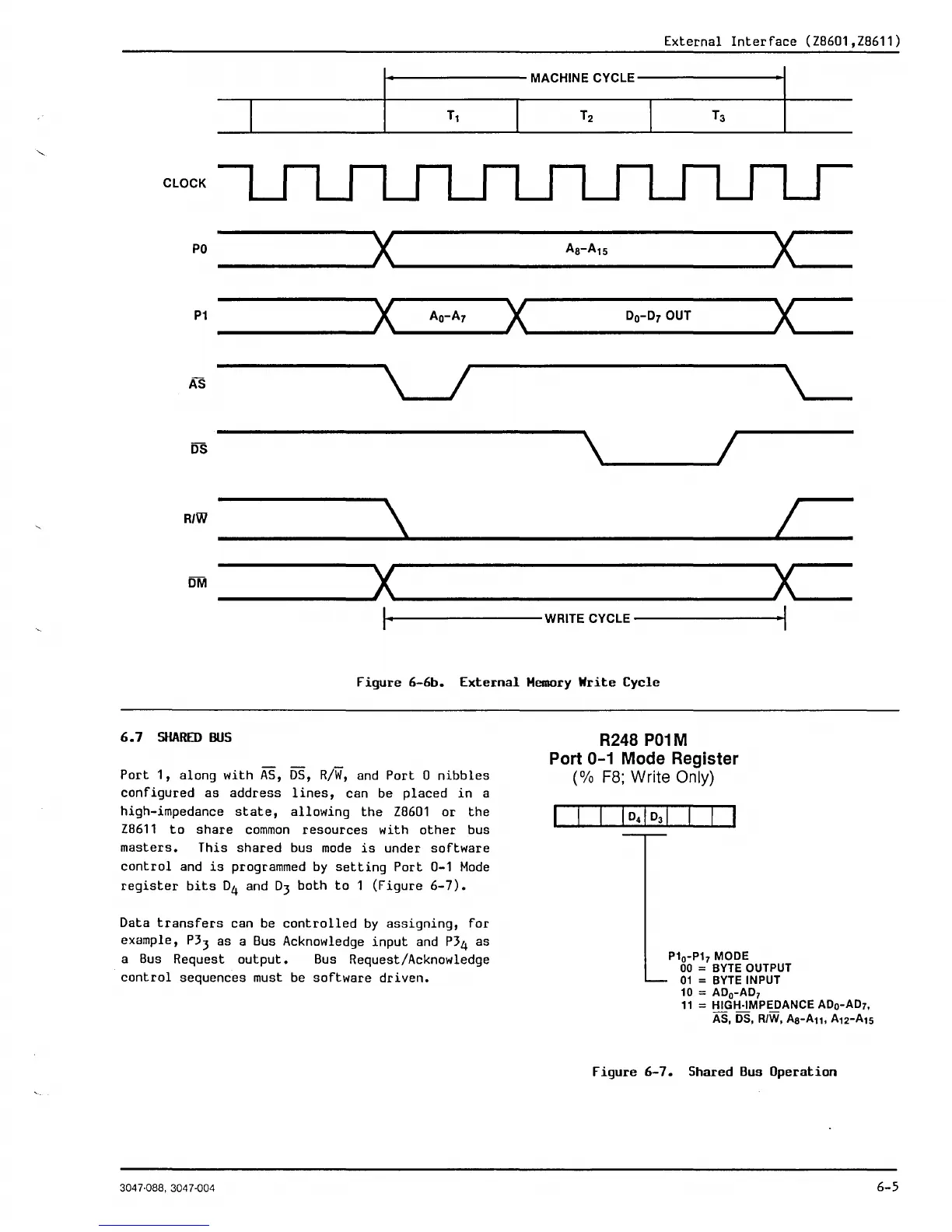

Figure
6-6b.
External
Memory
Write Cycle
6.7
SHARED
BUS
Port
1,
along
with
AS,
DS,
R/W,
and
Port
0
nibbles
configured
as
address
lines,
can be
placed
in
a
high-impedance
state,
allowing
the
Z8601
or
the
Z8611
to
share
common
resources
with
other
bus
masters.
This
shared
bus
mode
is
under
software
control
and
is
programmed
by
setting
Port
0-1
Mode
register
bits
D4
and
D3
both
to
1
(Figure
6-7).
Data
transfers
can be
controlled
by
assigning,
for
example,
P3
3
as a
Bus
Acknowledge
input
and
P34
as
a
Bus
Request
output.
Bus
Request/Acknowledge
control
sequences must be
software
driven.
R248
P01M
Port 0-1 Mode Register
(%
F8;
Write Only)
P1
0
-P1
7
MODE
00
= BYTE OUTPUT
01
= BYTE INPUT
10
= ADo-AD7
11
= HIGH-IMPEDANCE ADo-AD7.
AS.
OS.
R/W.
As-All.
A12-A15
Figure
6-7.
Shared Bus
Operation
3047-088, 3047-004
6-5
