SWT
GIGABIT/FAST ETHERNET SWITCH TYPE SWT 18/137
USER GUIDE - M0SWTA1903Iv09 - V09 March 2019
2 MECHANICAL AND ELECTRICAL CHARACTERISTICS
The diverse elements comprising the Gigabit/Fast Ethernet switch type SWT are supplied
in a shelf that is 19" wide and 1 standard unit (s.u.) high, which is prepared for rack
mounting.

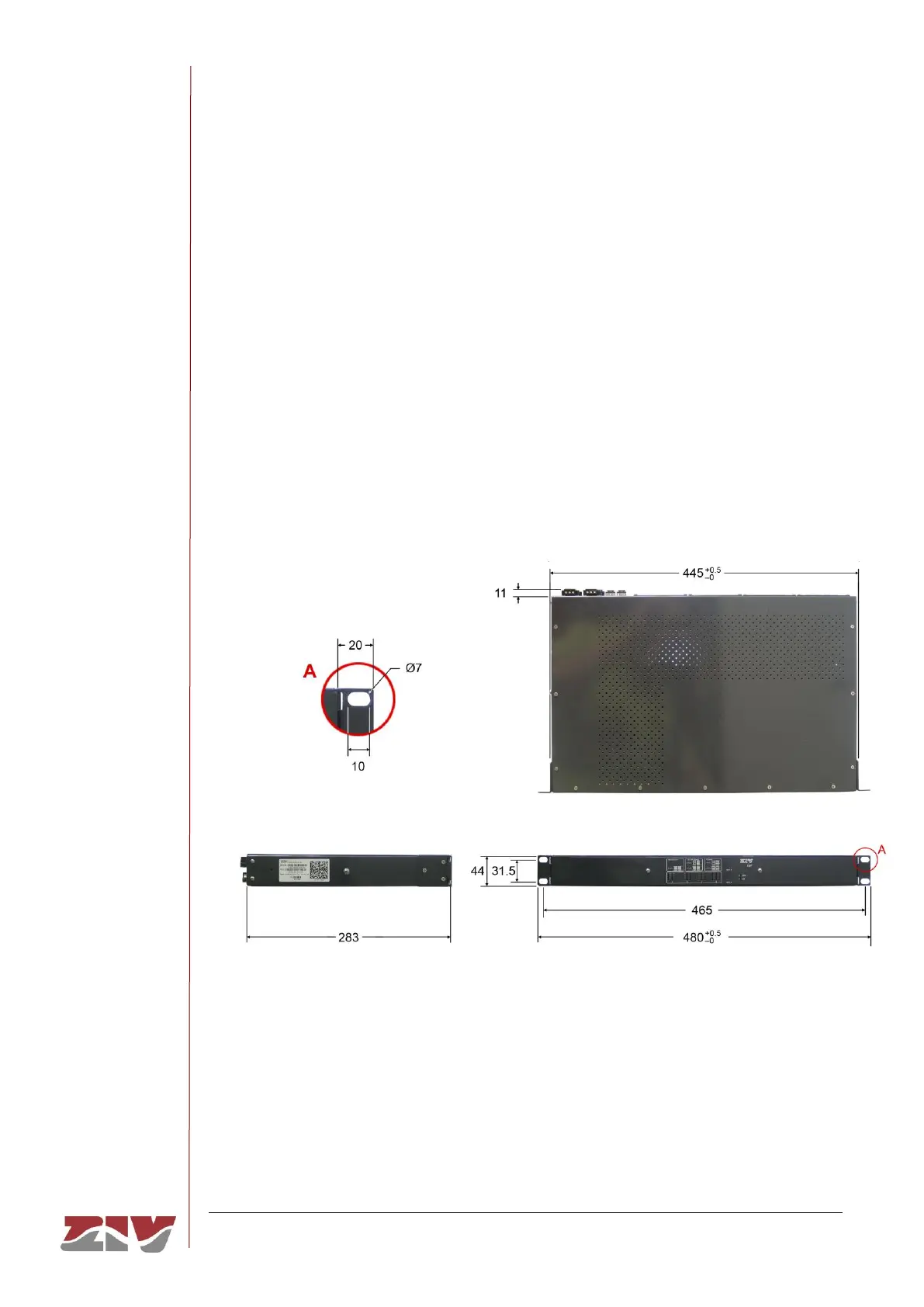

FIGURE 5 shows the general dimensions in mm of the SWT, as well as the position of the
fastening holes.
FIGURE 5 General dimensions in mm of the SWT
The SWT is powered with a nominal voltage of 48 V
DC
(isolated) or allows DC and AC
supply-voltage operation (80-360 Vdc, 80-260 Vac), through the connector shown in
FIGURE 6.
The female connector supplied with the equipment is suitable for rigid or flexible conductors
of up to 2.5 mm
2
.
