GIGABIT/FAST ETHERNET SWITCH TYPE SWT 28/137
USER GUIDE - M0SWTA1903Iv09 - V09 March 2019
2.7 SRV PORT
The electrical characteristics of the maintenance connector and its use are indicated below.
The connector has a protective cap.

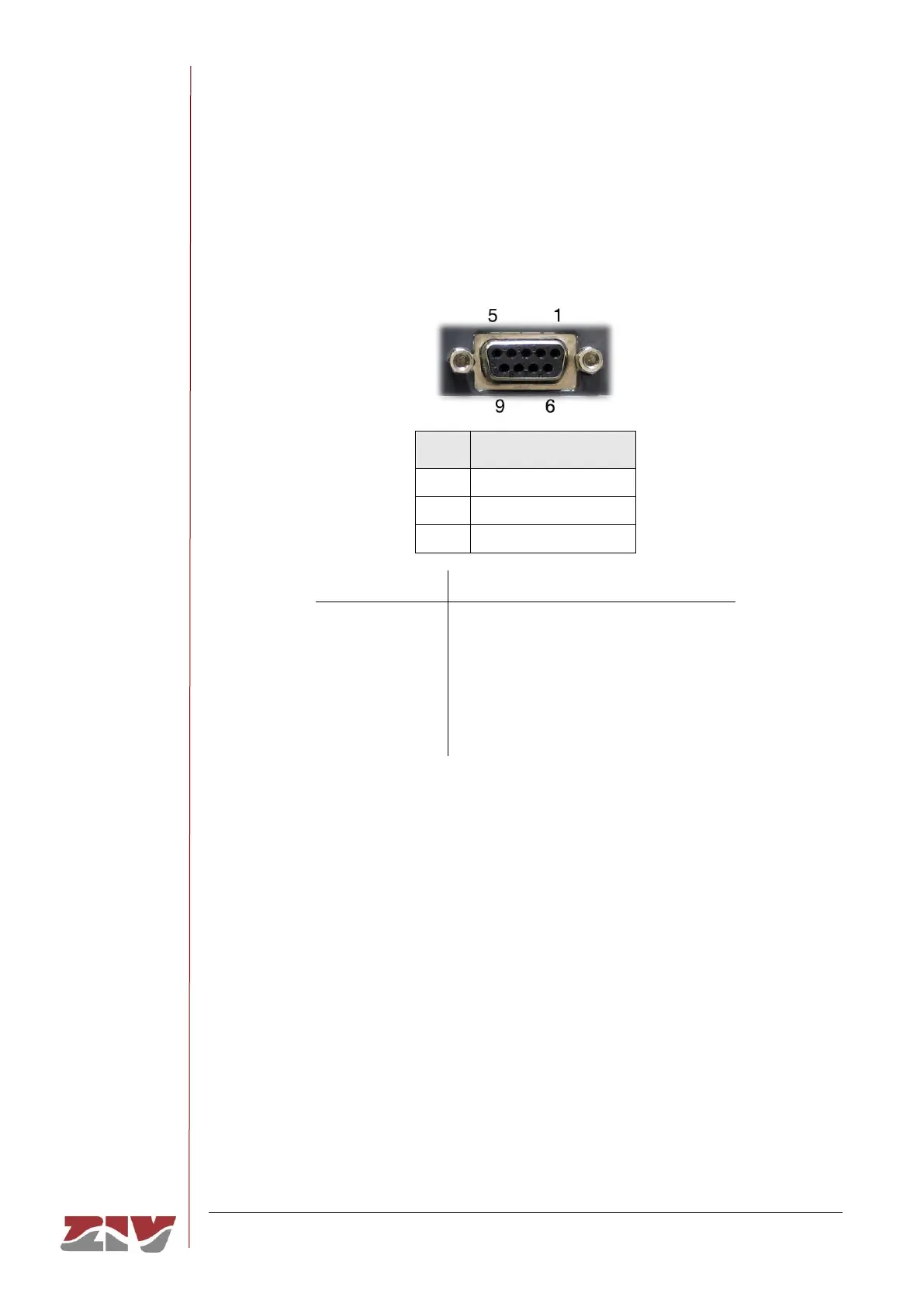

FIGURE 18 Location of the SRV maintenance connector
Pin
RS-232
2
RD
3
TD
5
GND
SRV CONNECTOR (DCE mode)
Interface type
ITU-T V.24/V.28 (EIA RS-232)
Connector
DB9 female
Data
Asynchronous
Speed
115200 bit/s
Protocol
CLI (system console)
