2.1 10/100BASE-TX (RJ-45) PORTS
The cable used to connect a 10/100Base-Tx port should be an unshielded twisted 4 pair
category five cable (UTP-5) with 8-pin RJ-45 connectors. The cable length should not be
more than 100 m.
The UTP-5 cable is made up of eight copper wires that form the four twisted pairs, covered
in different coloured insulating material. FIGURE 12 shows the colour of the wires that
make up each one of the pairs, according to ANSI/TIA/EIA-568-A standard.

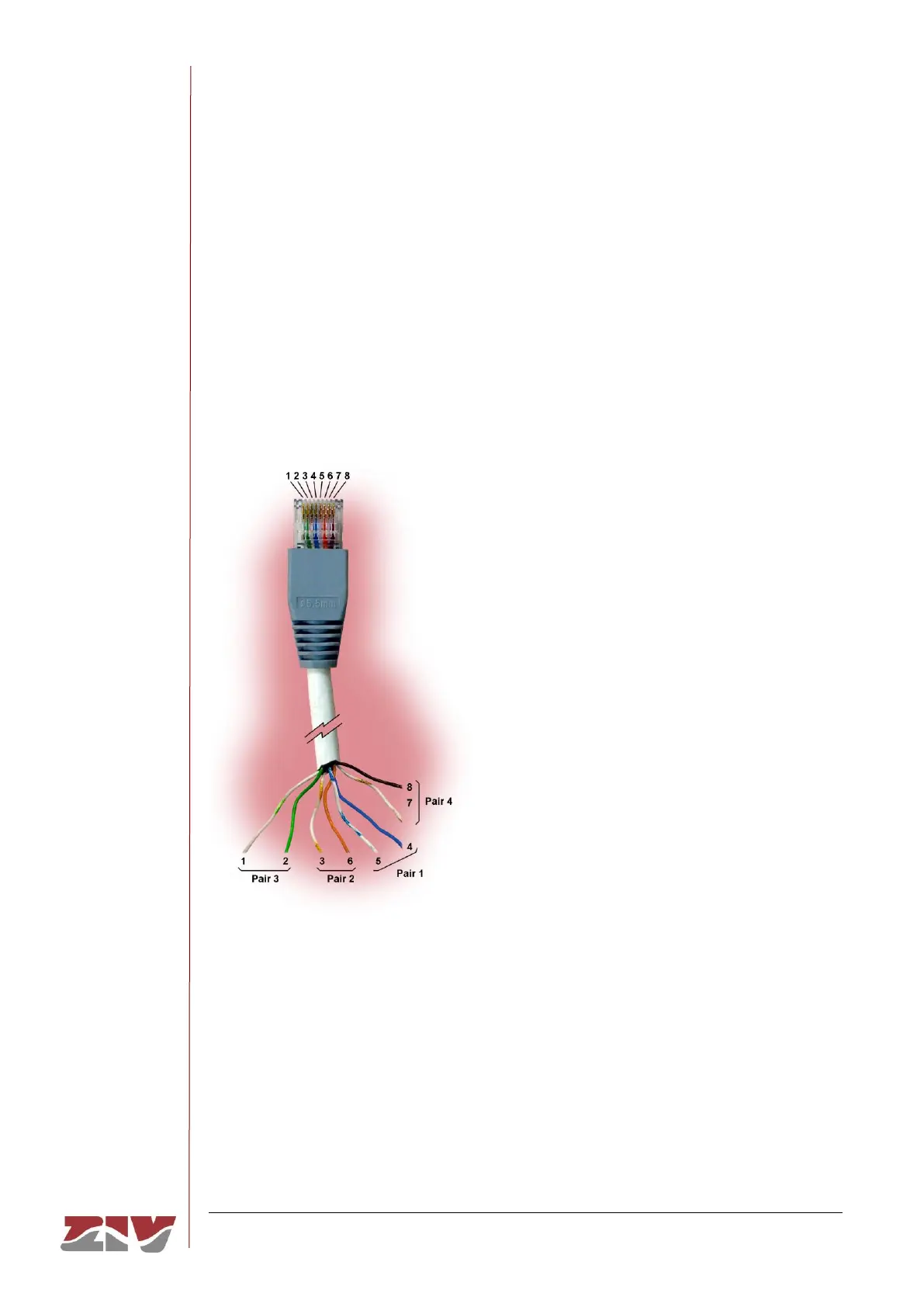

FIGURE 12 Unshielded twisted pair category five cable (UTP-5) with RJ-45 connector according to
ANSI/TIA/EIA-568-A standard
FIGURE 13 shows the use of each one of the pins of the RJ-45 connector, as well as the
pair it belongs to according to ANSI/TIA/EIA-568-A standard, in the 10/100Base-Tx LAN
interface.
