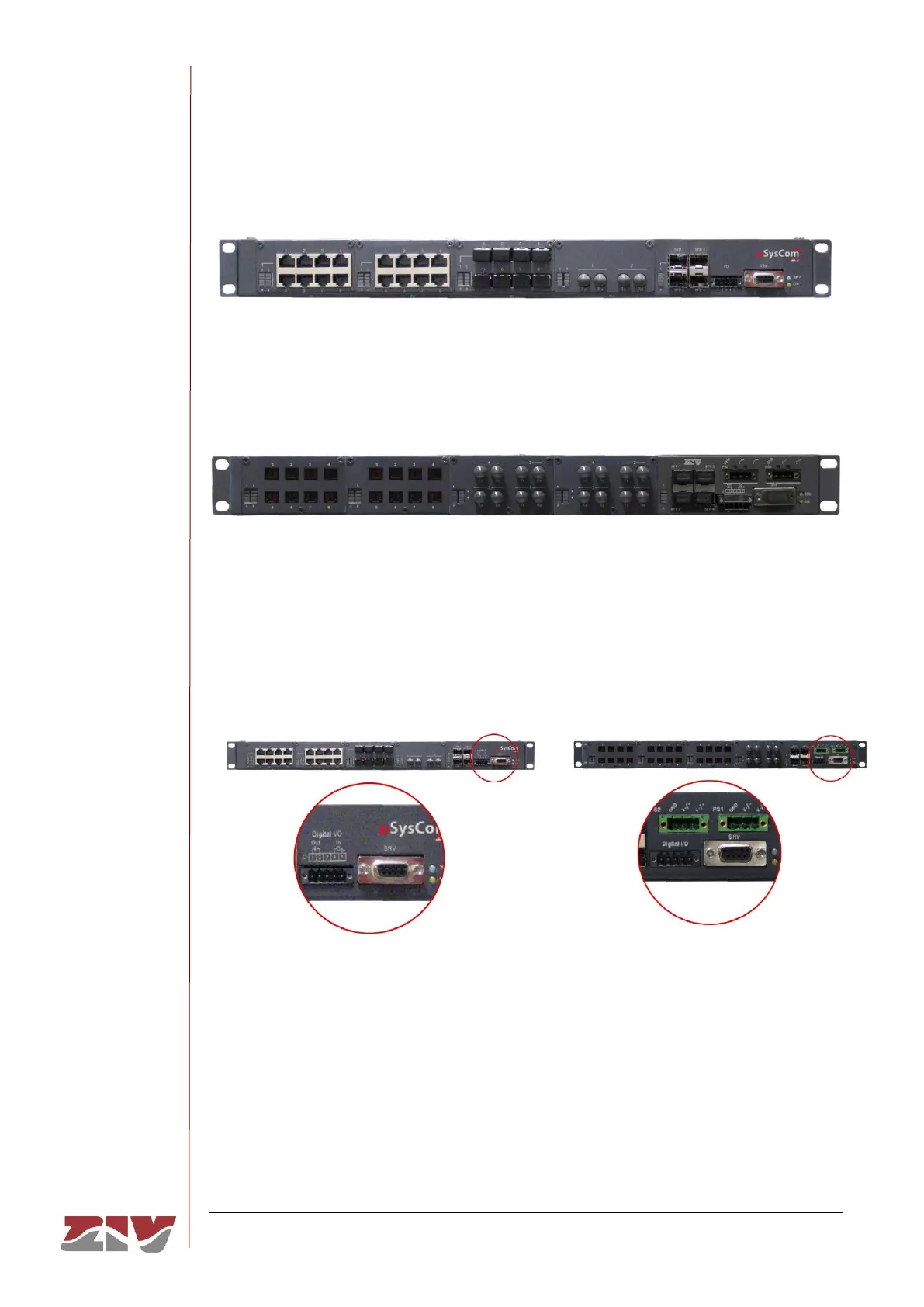

FIGURE 9 Front view of the SWT shelf with 26 Fast Ethernet front ports and 4 SFP bays
FIGURE 10 Rear view of the SWT shelf with 24 Fast Ethernet rear ports and 4 SFP bays
As is shown in FIGURE 11, there is a maintenance connector, identified as SRV, at the
right of the SWT, for accessing the equipment through a console, and an I/O connector.
FIGURE 11 Location of the SRV maintenance connector and the I/O connector
a) Front view of shelf with front ports
b) Rear view of shelf with rear ports
The electrical characteristics of the I/O connector are indicated in section 2.8.
The electrical characteristics of the maintenance connector and its use are indicated in
section 2.7, SRV port. The connector has a protective cap.
