GIGABIT/FAST ETHERNET SWITCH TYPE SWT 34/137
USER GUIDE - M0SWTA1903Iv09 - V09 March 2019
3.2 SWT WITH REAR PORTS

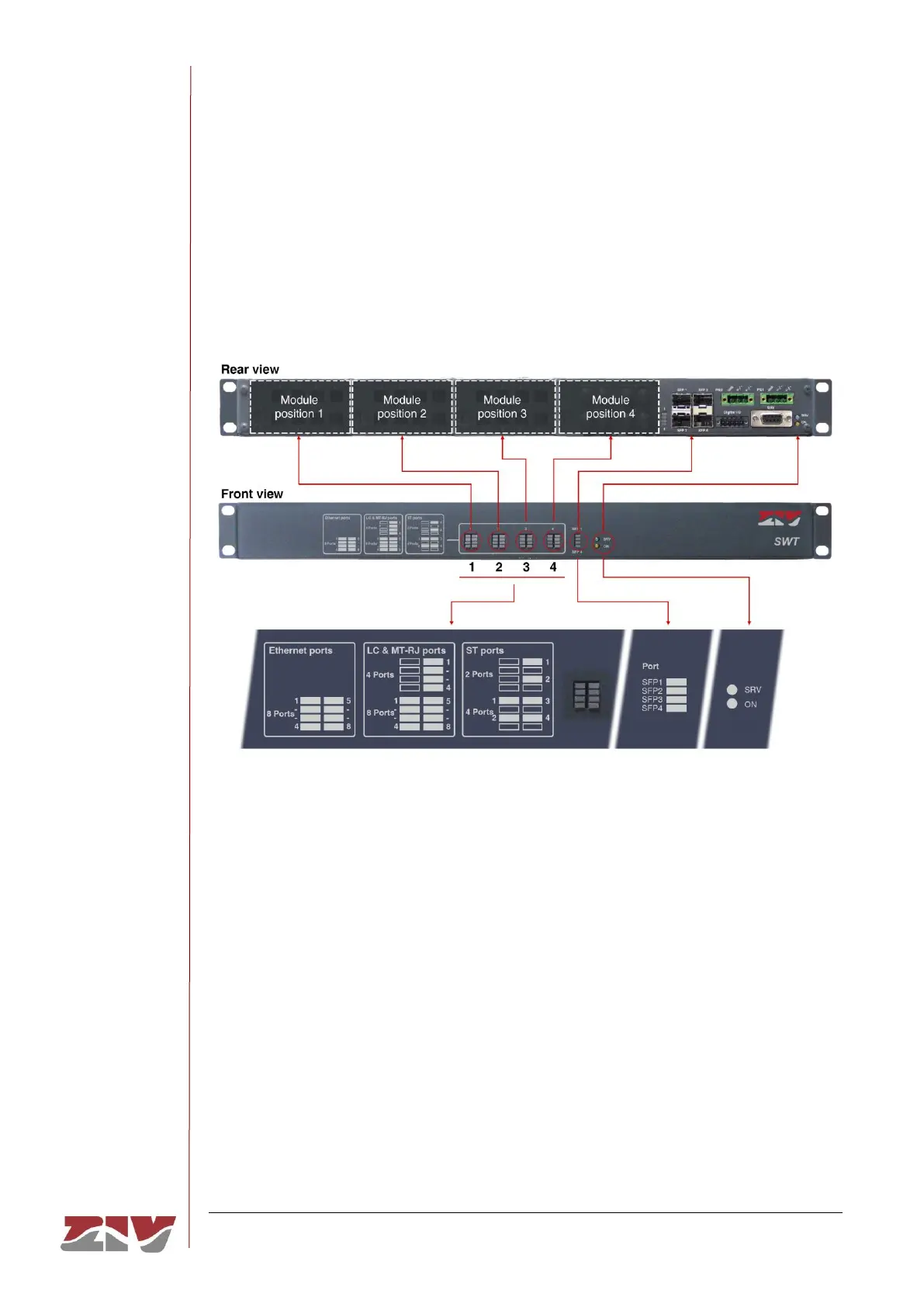

FIGURE 21 shows a front view of the SWT with rear ports, showing the detail of the
different LEDs. They are described below.
FIGURE 21 LEDs in the SWT with rear ports
Basic LEDs
SRV LED
Amber. It flashes when there is emission or reception activity by
the SRV serial service interface.
ON LED
Red. It is permanently lit when the equipment is powered with an
external power-supply voltage.
LEDs associated with SFP ports
SFP (1 to 4) LED
Amber. There is one LED per SFP interface. It stays on when the
link is established correctly and flashes in the case of emission or
reception activity in the interface.
