GIGABIT/FAST ETHERNET SWITCH TYPE SWT 35/137
USER GUIDE - M0SWTA1903Iv09 - V09 March 2019

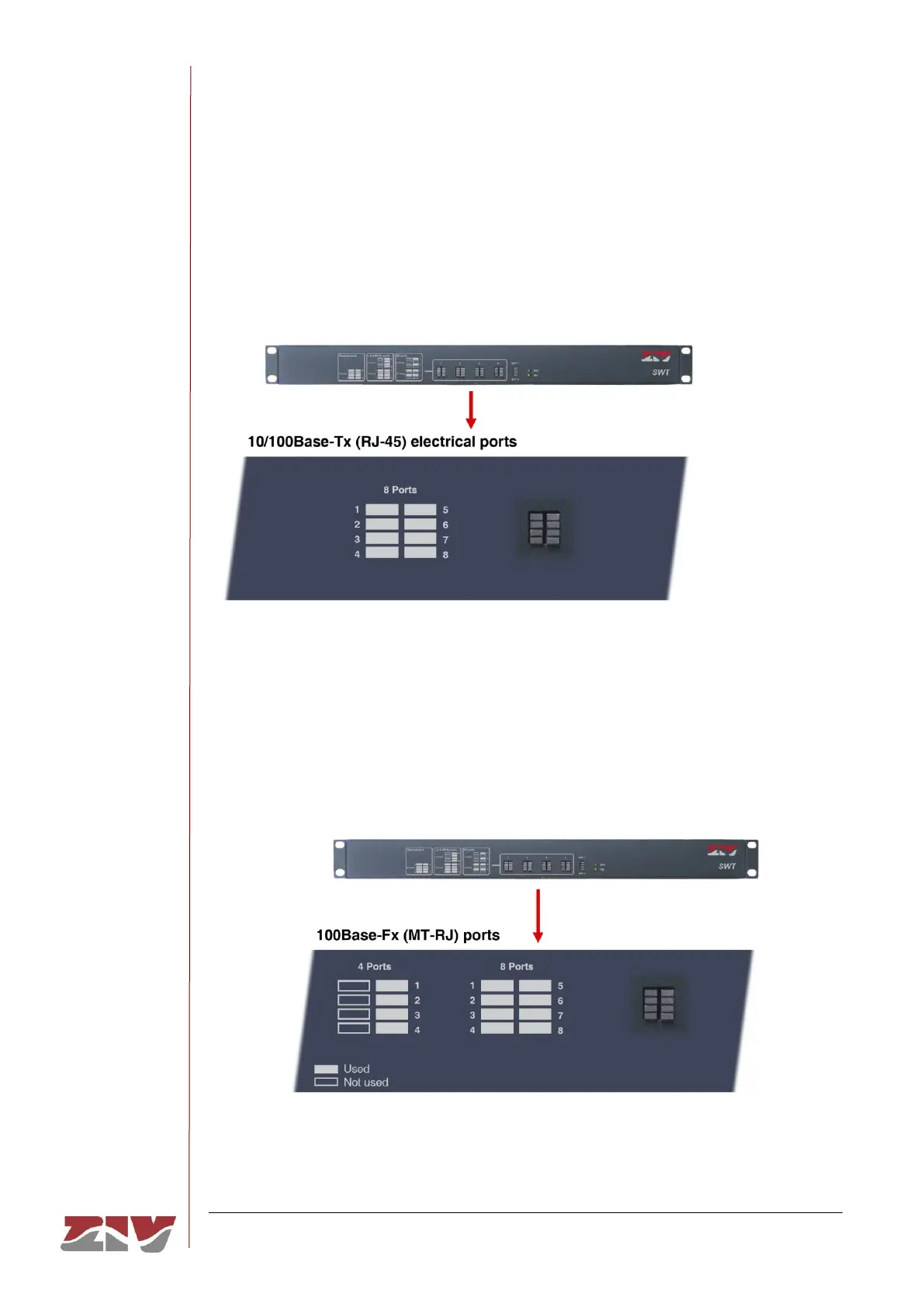

LEDs associated with 10/100Base-Tx (RJ-45) ports
Ethernet ports LEDs
Two-coloured. There is one LED per port. It stays on when
the link is established correctly and flashes in the case of
emission or reception activity in the interface. It lights up in
green at 100 Mbit/s and in amber at 10 Mbit/s.
LEDs associated with 100Base-Fx (multimode, MT-RJ) ports
MT-RJ ports LEDs
Green. There is one LED per port. It stays on when the link is
established correctly and flashes in the case of emission or
reception activity in the interface.
