SWT
GIGABIT/FAST ETHERNET SWITCH TYPE SWT 58/137
USER GUIDE - M0SWTA1903Iv09 - V09 March 2019

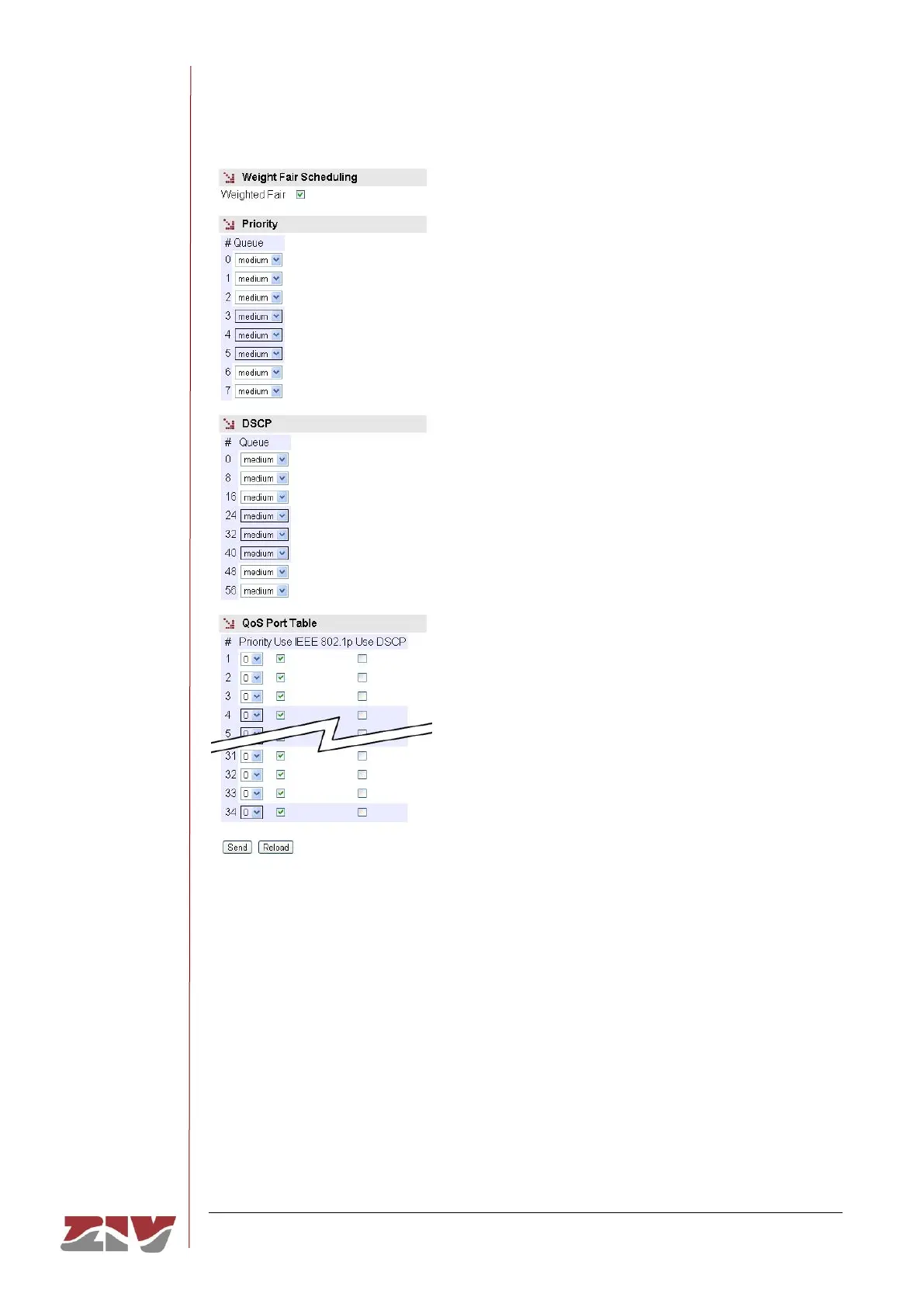

FIGURE 31 QoS menu configuration page
5.8 PORTS MONITORING CONFIGURATION
This menu performs Port mirroring functions in the ports in order to monitor their
behaviour.
The incoming and/or outgoing traffic from a specific port (Monitored port) is replicated in
a target port to be monitored through a protocol analyzer, for example.
