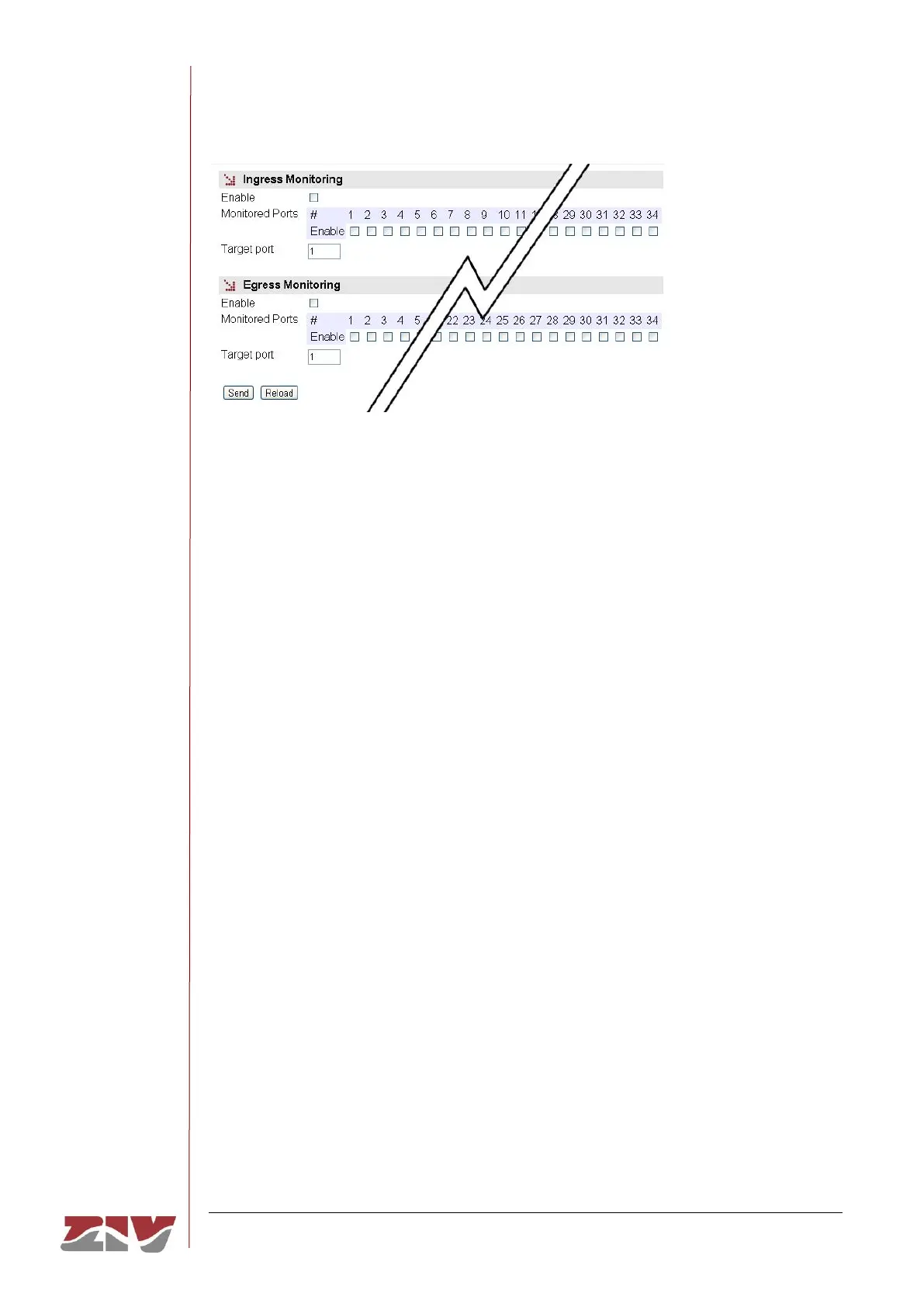

FIGURE 32 Monitor menu configuration page
The menu parameters are divided into two quite different blocks, which are:
− Incoming traffic monitoring (Ingress Monitoring).
− Outgoing traffic monitoring (Egress Monitoring).
The configuration parameters for each block are indicated below.
Ingress Monitoring:
• Enable. It permits enabling and disabling monitoring of the incoming traffic by
ticking or not ticking the corresponding box.
• Monitored Ports. It establishes the port or ports to be monitored. The incoming
traffic in each one of the selected ports will be replicated in the target port.
• Target port. It establishes the port where the replicated packets will be sent to be
monitored.
