ZIV SWT - Page 36

SWT
GIGABIT/FAST ETHERNET SWITCH TYPE SWT 36/137
USER GUIDE - M0SWTA1903Iv09 - V09 March 2019

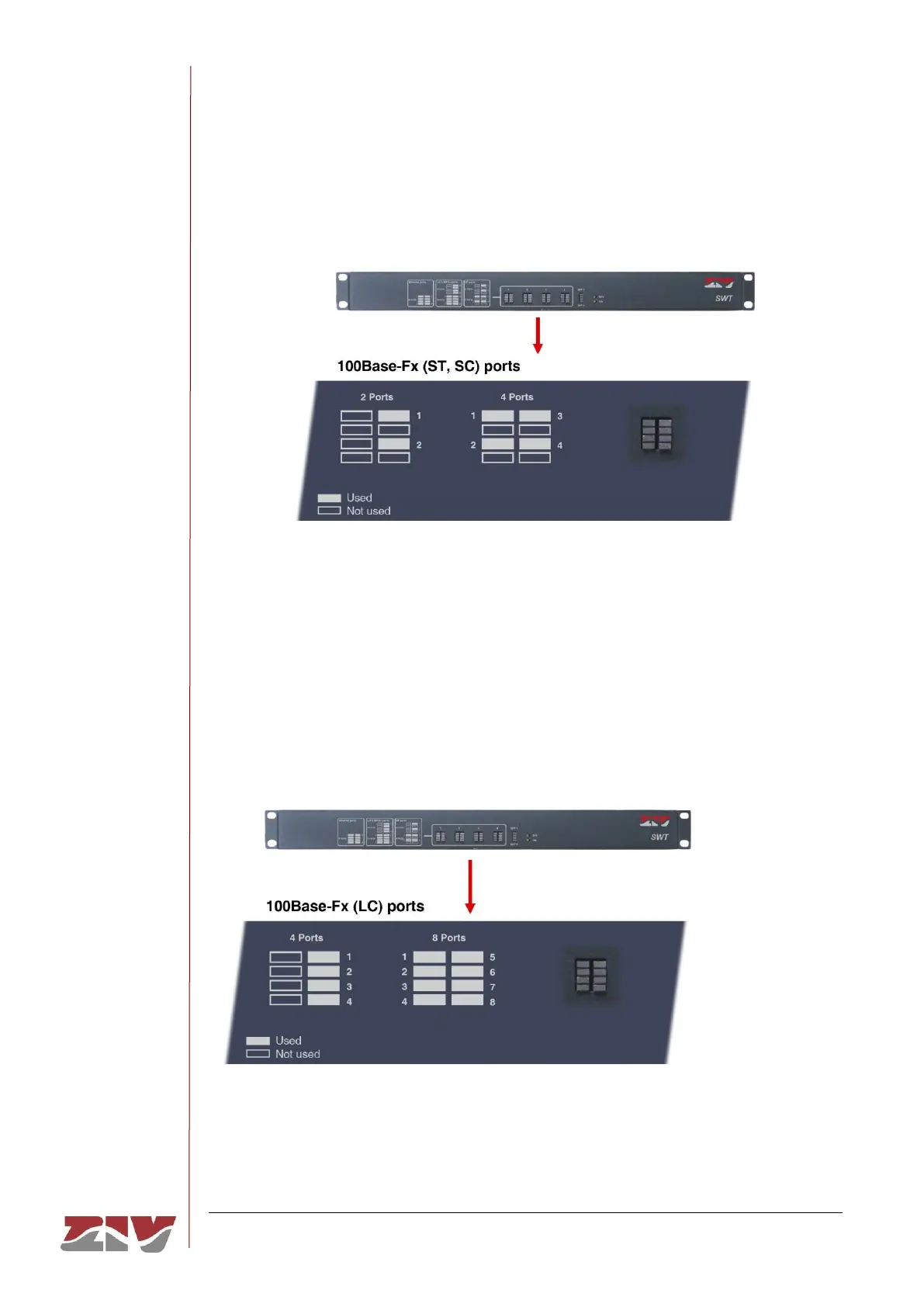

LEDs associated with 100Base-Fx (multimode, ST or SC) ports
ST or SC ports LEDs
Green. There is one LED per port. It stays on when the link is
established correctly and flashes in the case of emission or
reception activity in the interface.
LEDs associated with 100Base-Fx (multimode, LC) ports
or 100Base-Lx (singlemode, LC)
LC ports LEDs
Green. There is one LED per port. It stays on when the link is
established correctly and flashes in the case of emission or
reception activity in the interface.
