GIGABIT/FAST ETHERNET SWITCH TYPE SWT 27/137
USER GUIDE - M0SWTA1903Iv09 - V09 March 2019
Removing procedure of an SFP module
The removing procedure of an SFP module is the following:
1. Disconnect the optical fiber from the connector of the SFP module.
2. Pull down the transceiver security lever.
3. Whilst the security lever down, remove the port from the module (if the SFP does not
slide out of the slot easily, make a slight oscillating motion from one side to another,
while firmly pulling the SFP outward).

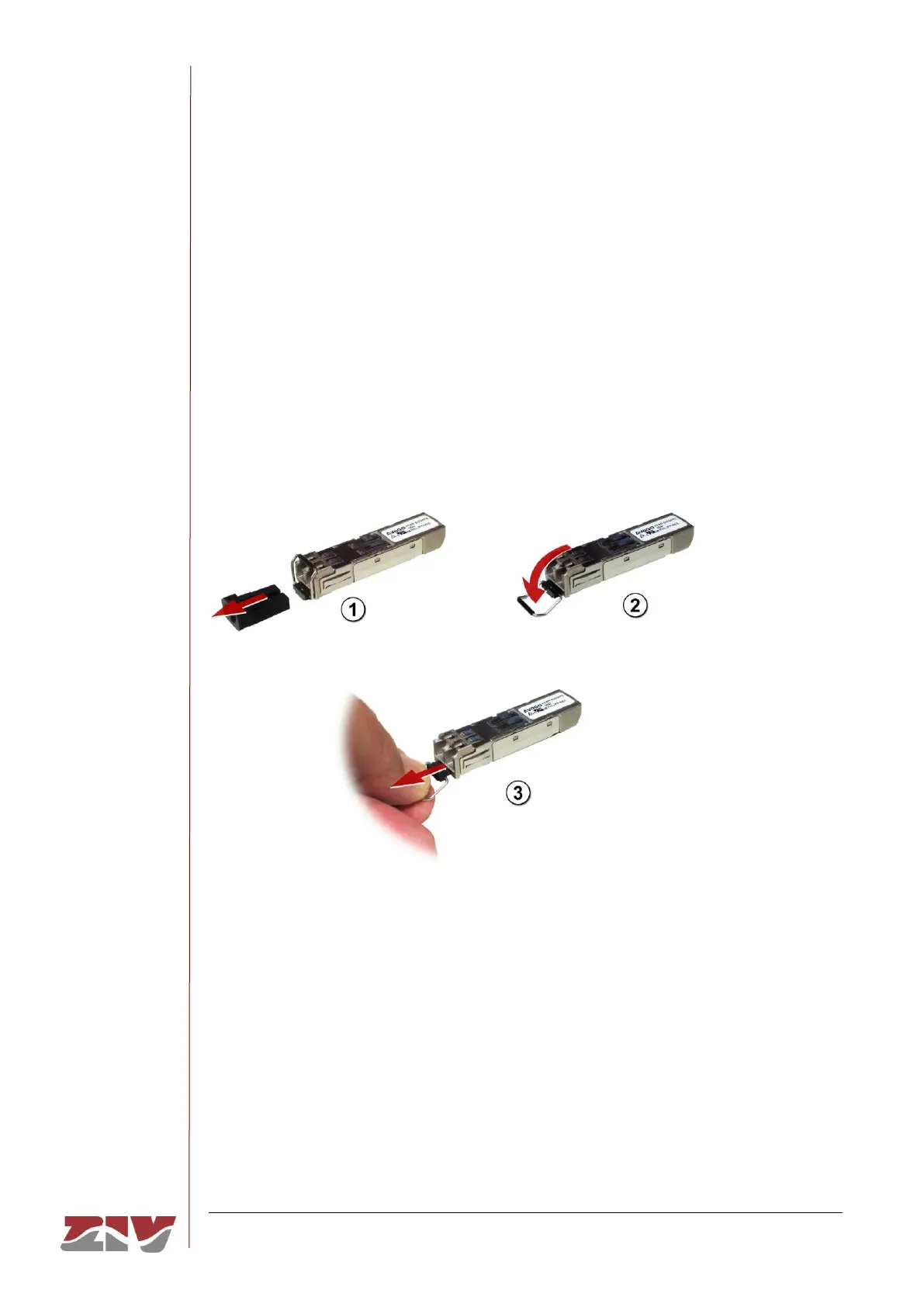

FIGURE 17 Removing an SFP transceiver
