GIGABIT/FAST ETHERNET SWITCH TYPE SWT 32/137
USER GUIDE - M0SWTA1903Iv09 - V09 March 2019

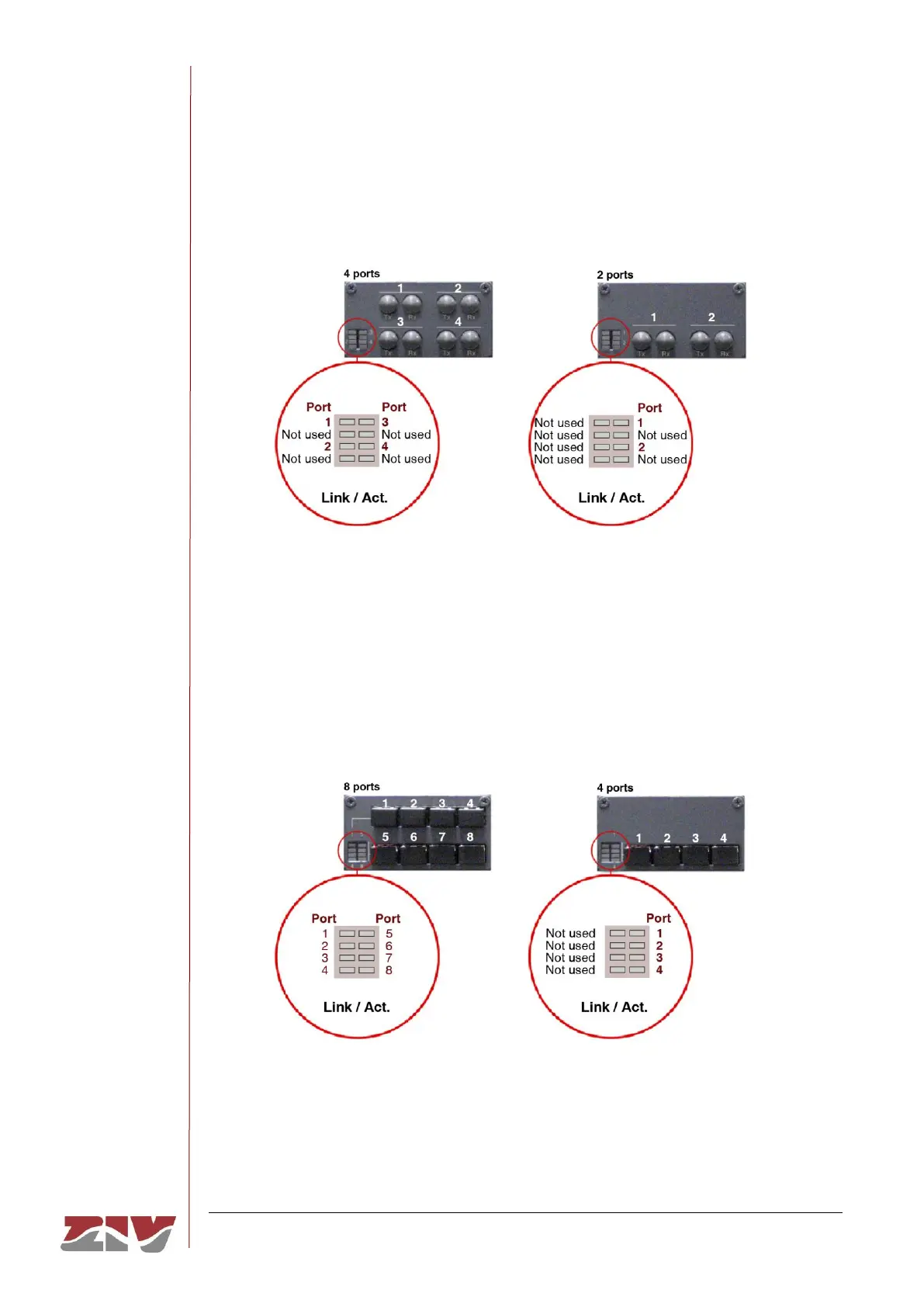

LEDs associated with 100Base-Fx (multimode, ST) ports
Link/Act. LED
Green. There is one LED per port. It stays on when the link is
established correctly and flashes in the case of emission or
reception activity in the interface.
LEDs associated with 100Base-Fx (multimode, LC) ports
or 100Base-Lx (singlemode, LC)
Link/Act. LED
Green. There is one LED per port. It stays on when the link is
established correctly and flashes in the case of emission or
reception activity in the interface.
