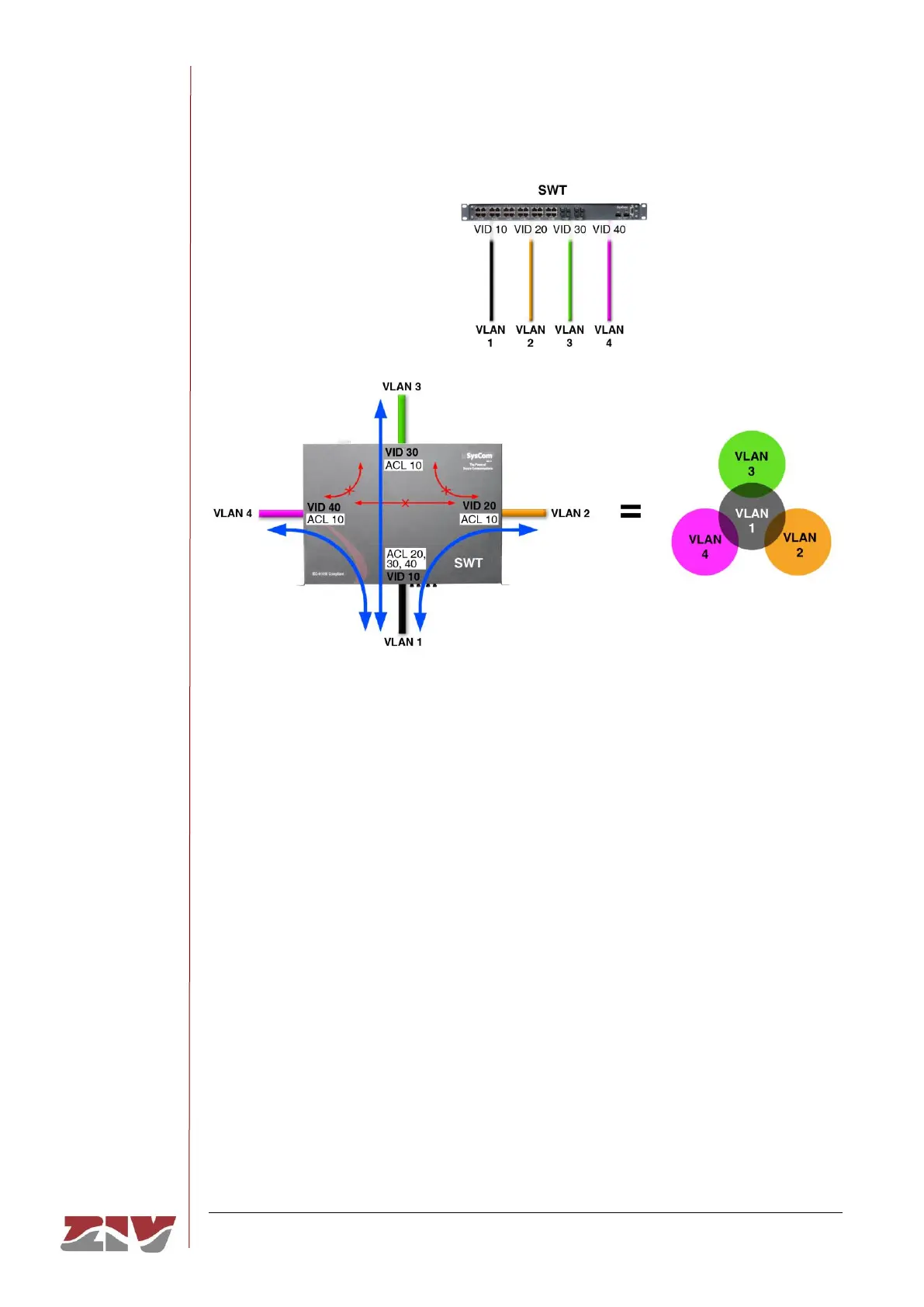

FIGURE 28 Example for using the Overlapping Enable parameter
VLANs:
The individual configuration parameters for each VLAN are:
• #. Indicates the position in the table.
• Name. A mnemonic descriptive field available to users.
• VID. It establishes the VLAN identifier. The admitted range goes from 1 to 4095.
• PRI Override. This establishes whether the priority of the frames received in the
ports assigned to the VLAN VID should be overridden in the PRI field value
(enabled option), or whether it should be maintained (Disabled option). This field
does NOT affect the ports in which the VLAN function parameter is configured as
trunk.
• PRI. If the PRI Override option is enabled, the original priority of the frames
received with a tag will be modified with the established value.
