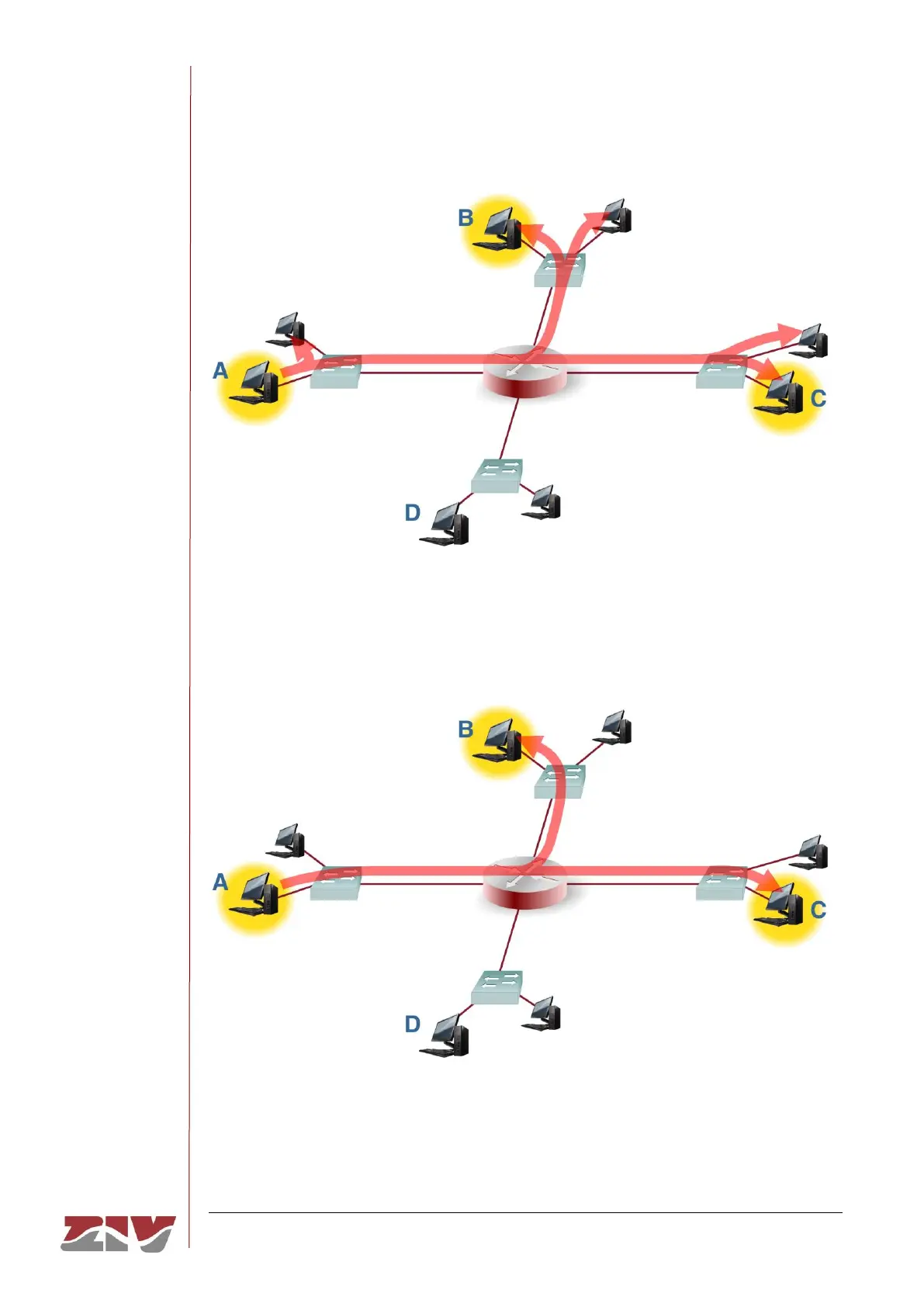

FIGURE 40 Example of using the GARP/GMRP or IGMP Snooping
a) Network that does NOT use Multicast configuration protocols
b) Network that uses GARP/GMRP or IGMP Snooping in its level-2 devices
