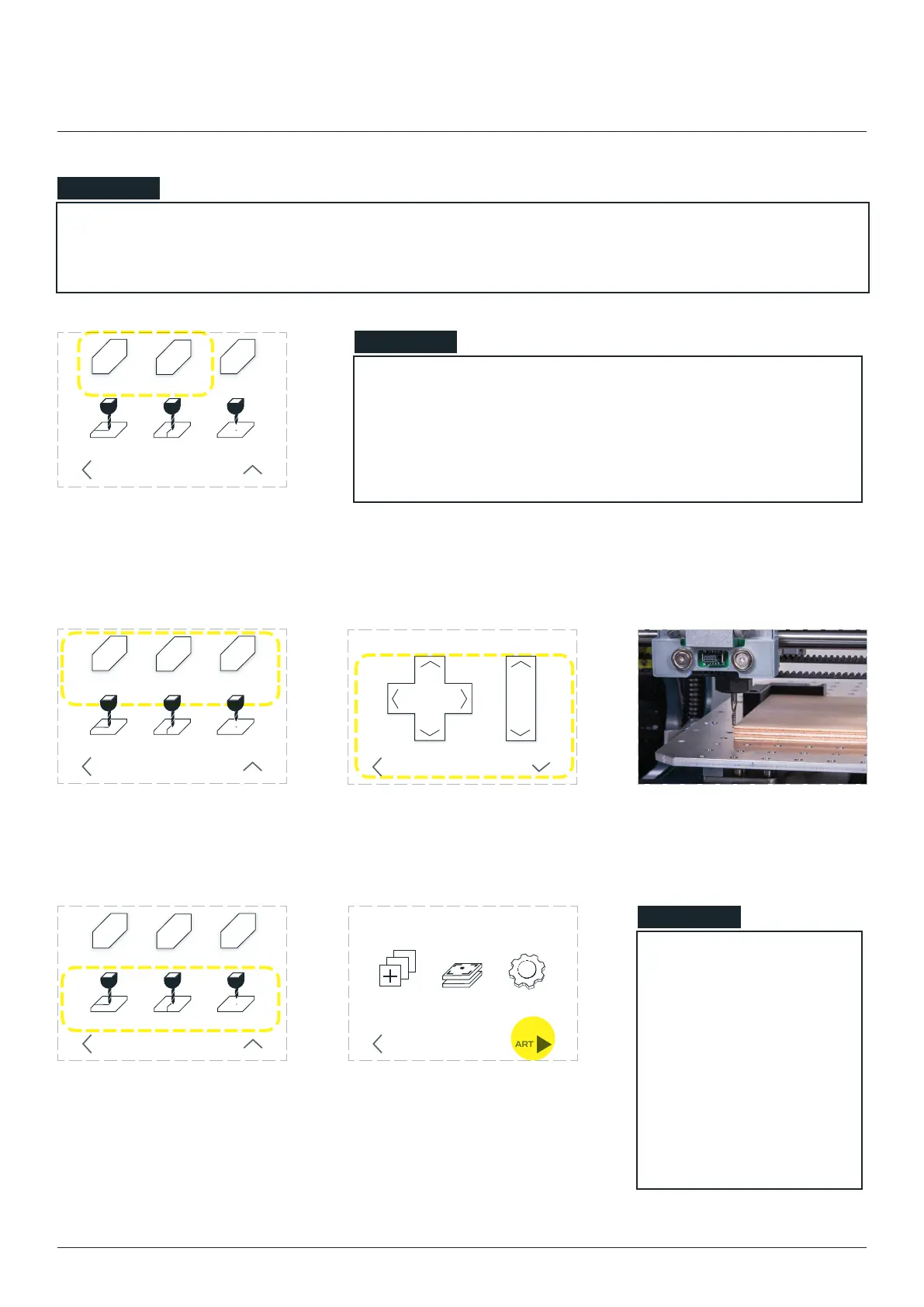

Zmorph Fab - QUICK START GUIDE 34
NOTE
NOTE
NOTE
The information on the Z axis height is stored in the motherboard internal memory. That is guided
by the fact that this value is not easy to change manually by the user unlike the X and Y axes.
Don’t home the Z axis when the milling cutter is in the
spindle and when there is material on the CNC worktable.
This will damage the milling cutter and might disarrange the
Z axis motors.
In most cases the local
starting position will
be the material surface
left, front corner.
Toggle the distance
button for better
control over the cutter.
HOME X’ and
‘HOME Y’ buttons. Watch out
for your cutter not to hit the
material on the worktable.
SET X = 0 SET Y = 0 SET Z = 0
HOME X HOME ZHOME Y
ZX
Y
BACK MOVE
SET X = 0 SET Y = 0 SET Z = 0
HOME X HOME ZHOME Y
ZX
Y
BACK MOVE
Go back to ‘MOVE’ menu. Using provided arrow buttons, move the spindle to the FRONT-LEFT
corner of material.
X Y Z
MOVE ZMOVE X Y
BACK SET
CNC milling
When the cutter is in its lo-
cal position, go to the ‘SET’
menu and set the local 0,0,0
coordinates by pressing the
‘SET X = 0’, ‘ SET Y = 0’ and
‘SET Z = 0’ buttons.
Go back to the main menu
and choose ‘START’. Your ma-
chine will start working.
SET X = 0 SET Y = 0 SET Z = 0
HOME X HOME ZHOME Y
ZX
Y
BACK MOVE
CALIBRATE SETTINGSCHOOSE
FILE
STARTBACK
10mm 1mm
70.00 30.00 12.00
