NOTE
NOTE

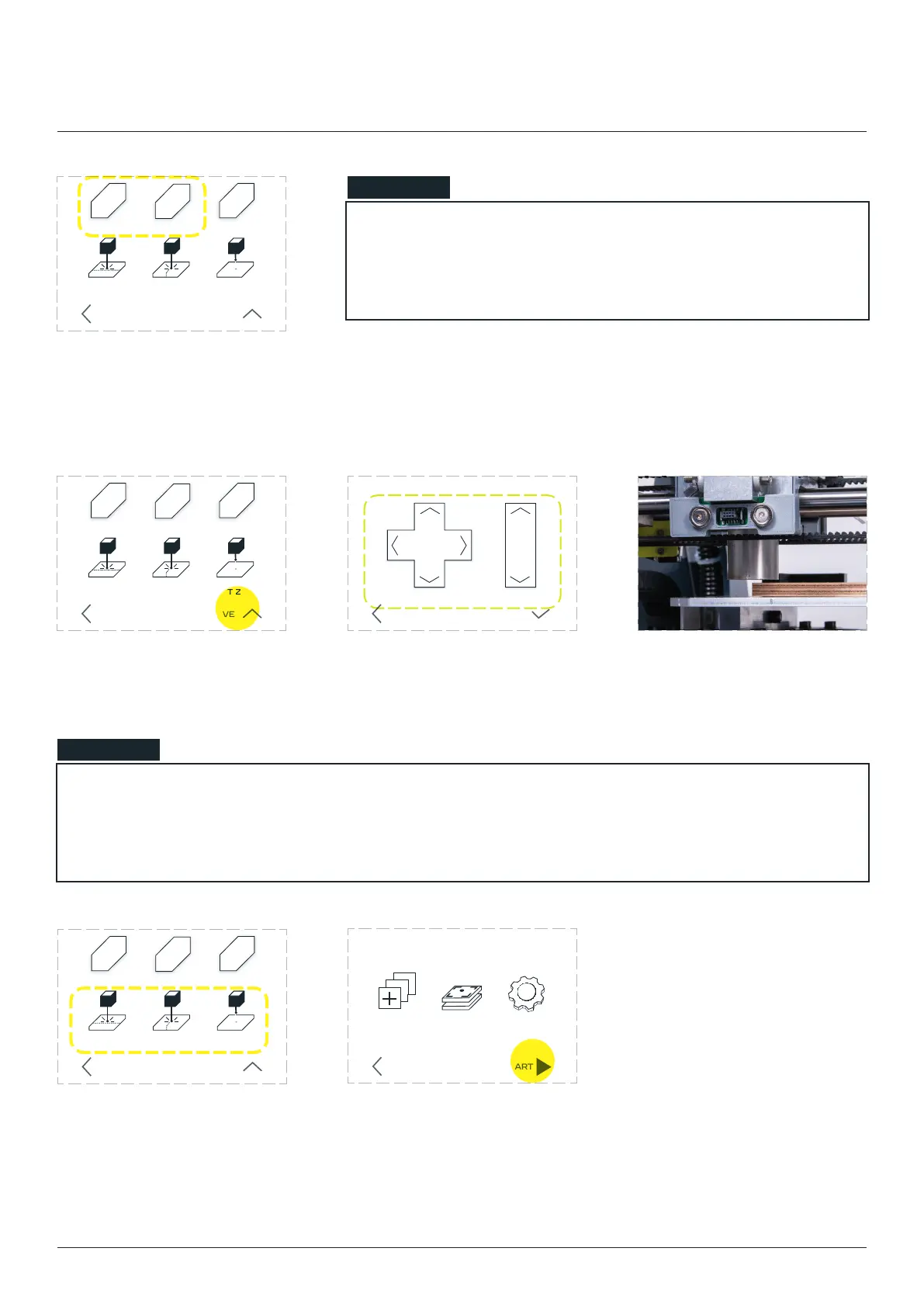

Don’t home the Z axis when there is material on the
worktable. This will cause the laser tube to hit the material
and might disarrange the Z axis motors.
In most cases the local starting position will be the material surface left, front corner.
Toggle the distance button for better control over the laser tube.
HOME X’ and
‘HOME Y’ buttons. Watch out
for your cutter not to hit the
material on the worktable.
ZX
Y
HOME X HOME ZHOME Y
SET Y = 0 SET Z = 0
BACK MOVE
SET X = 0
Go back to ‘MOVE’ menu. Using provided arrow buttons, move the spindle to the FRONT-LEFT
corner of material.
ZX
Y
HOME X HOME ZHOME Y
SET Y = 0 SET Z = 0
BACK MOVE
SET X = 0
X Y Z
MOVE ZMOVE X Y
BACK SET
When the laser tube is in its
local position, go to the ‘SET’
menu and set the local 0,0,0
coordinates by pressing the
‘SET X = 0’, ‘SET Y = 0’ and
‘SET Z = 0’ buttons.
Go back to the main menu
and choose ‘START’. Your ma-
chine will start working.
ZX
Y
HOME X HOME ZHOME Y
SET Y = 0 SET Z = 0
BACK MOVE
SET X = 0
CALIBRATE SETTINGSCHOOSE
FILE
STARTBACK
Laser cutting and engraving
10mm 1mm
