516 CHAPTER 45: REMOTE-PING CONFIGURATION

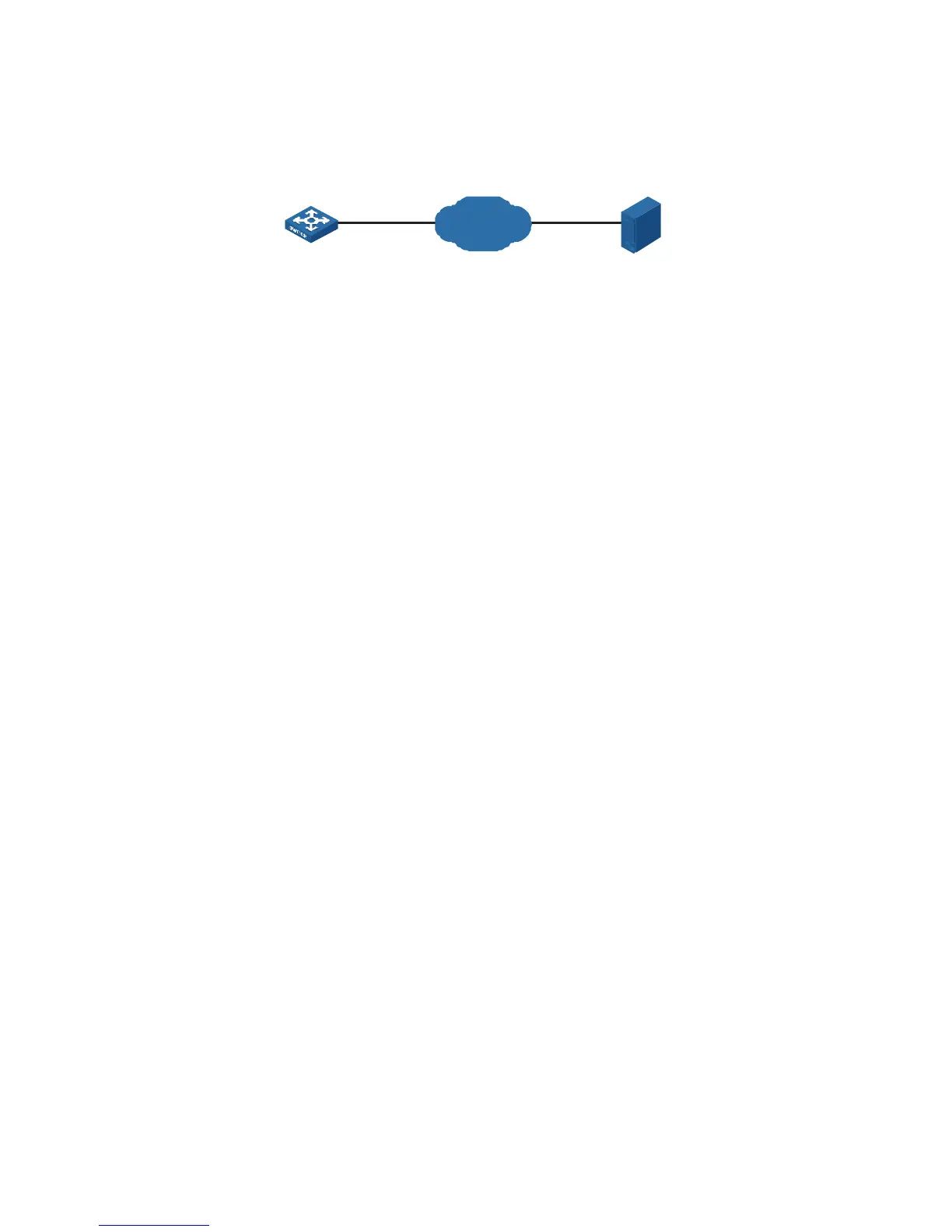

Network diagram
Figure 183 Network diagram for the HTTP test
Configuration procedure
■ Configure the HTTP Server. Use a Windows 2003 Server as the HTTP server and
follow the instructions in your Windows 2003 Server documentation.
■ Configure Remote-Ping Client (Switch A):
# Enable the Remote-Ping client.
<4210> system-view
[4210] Remote-Ping-agent enable
# Create a Remote-Ping test group, setting the administrator name to
"administrator" and test tag to "HTTP".
[4210] Remote-Ping administrator http
# Configure the test type as http.
[4210-Remote-Ping-administrator-http] test-type http
# Configure the IP address of the HTTP server as 10.2.2.2.
[4210-Remote-Ping-administrator-http] destination-ip 10.2.2.2
# Configure to make 10 probes per test.
[4210-Remote-Ping-administrator-http] count 10
# Set the probe timeout time to 30 seconds.
[4210-Remote-Ping-administrator-http] timeout 30
# Start the test.
[4210-Remote-Ping-administrator-http] test-enable
# Display test results
[4210-Remote-Ping-administrator-http] display Remote-Ping results administrator h
ttp
Remote-Ping entry(admin administrator, tag http) test result:
Destination ip address:10.2.2.2
Send operation times: 10 Receive response times: 10
Min/Max/Average Round Trip Time: 47/87/74
Square-Sum of Round Trip Time: 57044
Last succeeded test time: 2000-4-2 20:41:50.4
Extend result:
SD Maximal delay: 0 DS Maximal delay: 0
Packet lost in test: 0%
Disconnect operation number: 0 Operation timeout number: 0
System busy operation number: 0 Connection fail number: 0
Operation sequence errors: 0 Drop operation number: 0
Other operation errors: 0
Http result:
DNS Resolve Time: 0 HTTP Operation Time: 675
DNS Resolve Min Time: 0 HTTP Test Total Time: 748
DNS Resolve Max Time: 0 HTTP Transmission Successful Times: 10
DNS Resolve Failed Times: 0 HTTP Transmission Failed Times: 0
DNS Resolve Timeout Times: 0 HTTP Transmission Timeout Times: 0
