18 CHAPTER 1: GETTING STARTED

■ Databit = 8

■ Parity check = none

■ Stopbit = 1

■ Flow control = none

■ Terminal type = VT100

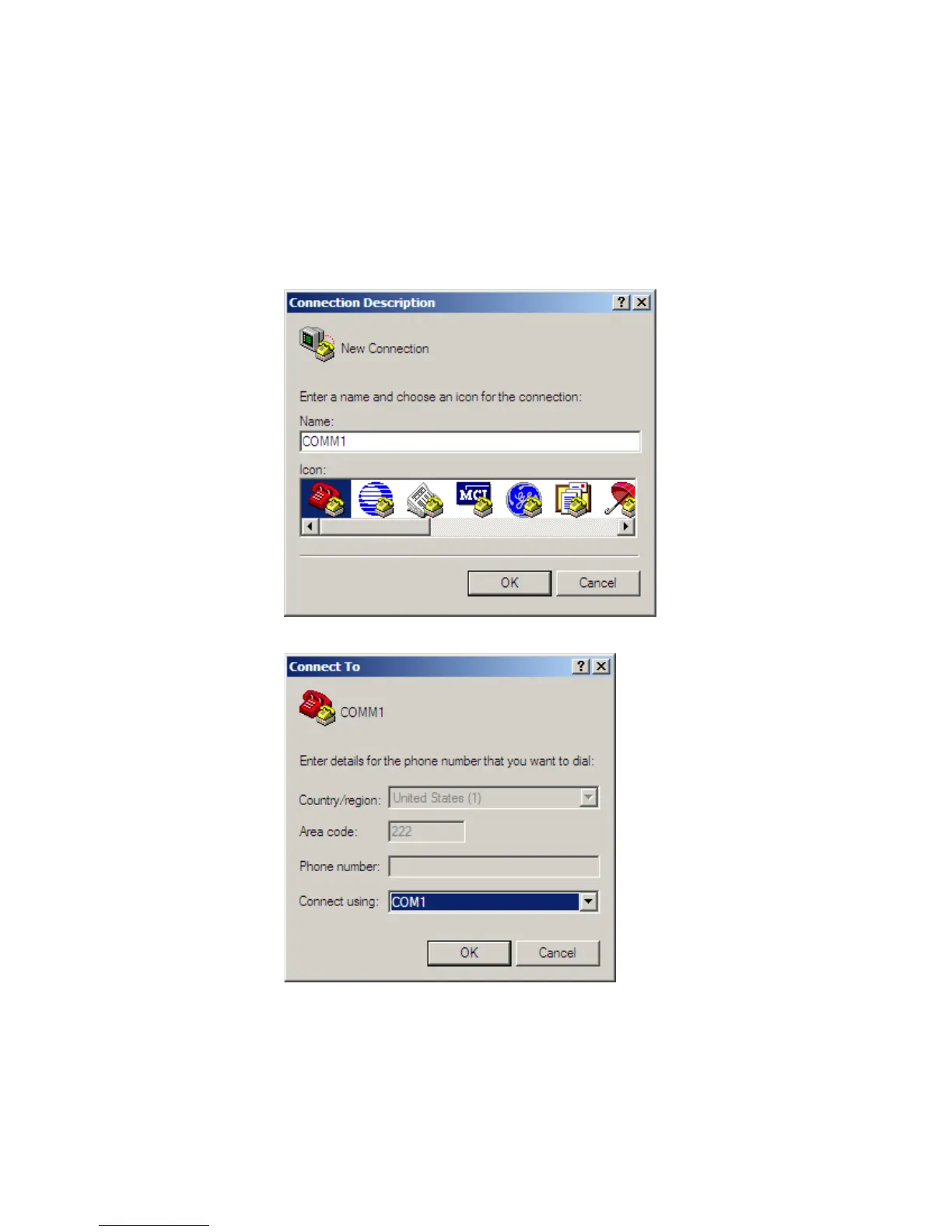

Figure 3 Setting up a New Connection

Figure 4 Configuring the Port for Connection
