78 CHAPTER 4: POWER OVER ETHERNET CONFIGURATION
to guarantee the power feeding to the PD that will be connected to the
Ethernet1/0/24 even when the Switch 4500 PWR is in full load.

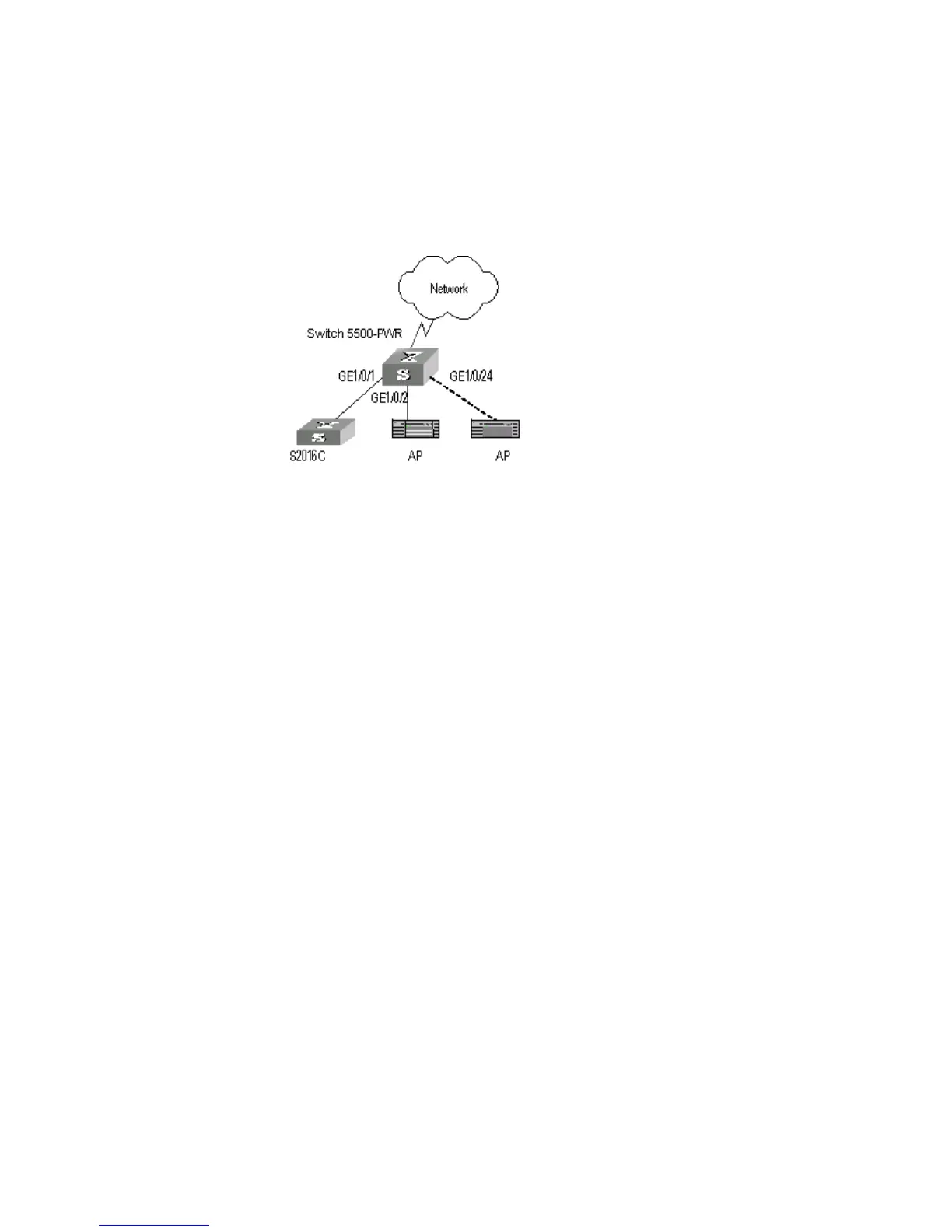

Network Diagram
Figure 20 PoE Remote Power Supply
Configuration Procedure
Update the PSE processing software online.
[4500]poe update refresh 0290_021.s19
Enable the PoE feature on the Ethernet1/0/1, Ethernet1/0/2, and Ethernet1/0/24
ports (the feature is enabled by default, so this step can be ignored).
[4500-Ethernet1/0/1]poe enable
[4500-Ethernet1/0/2]poe enable
[4500-Ethernet1/0/24]poe enable
Set the maximum power output of Ethernet1/0/1 and Ethernet1/0/2 to 12000 and
3000 mW respectively.
[4500-Ethernet1/0/1]poe max-power 12000
[4500-Ethernet1/0/2]poe max-power 3000
Set the priority of Ethernet1/0/24 to critical to guarantee the power feeding to
the AP to which this port connects.
[4500-Ethernet1/0/24]poe priority critical
Set the power supply management mode on the switch to auto (it is the default
mode, so this step can be ignored).
[4500]poe power-management auto
Enable the PD compatibility detect of the switch to allow the switch to supply
power to part of the devices noncompliant with the 802.3af standard.
[4500]poe legacy enable
