 Ensure that axes are checked from the appropriate side of the machine (to better
judge flatness):

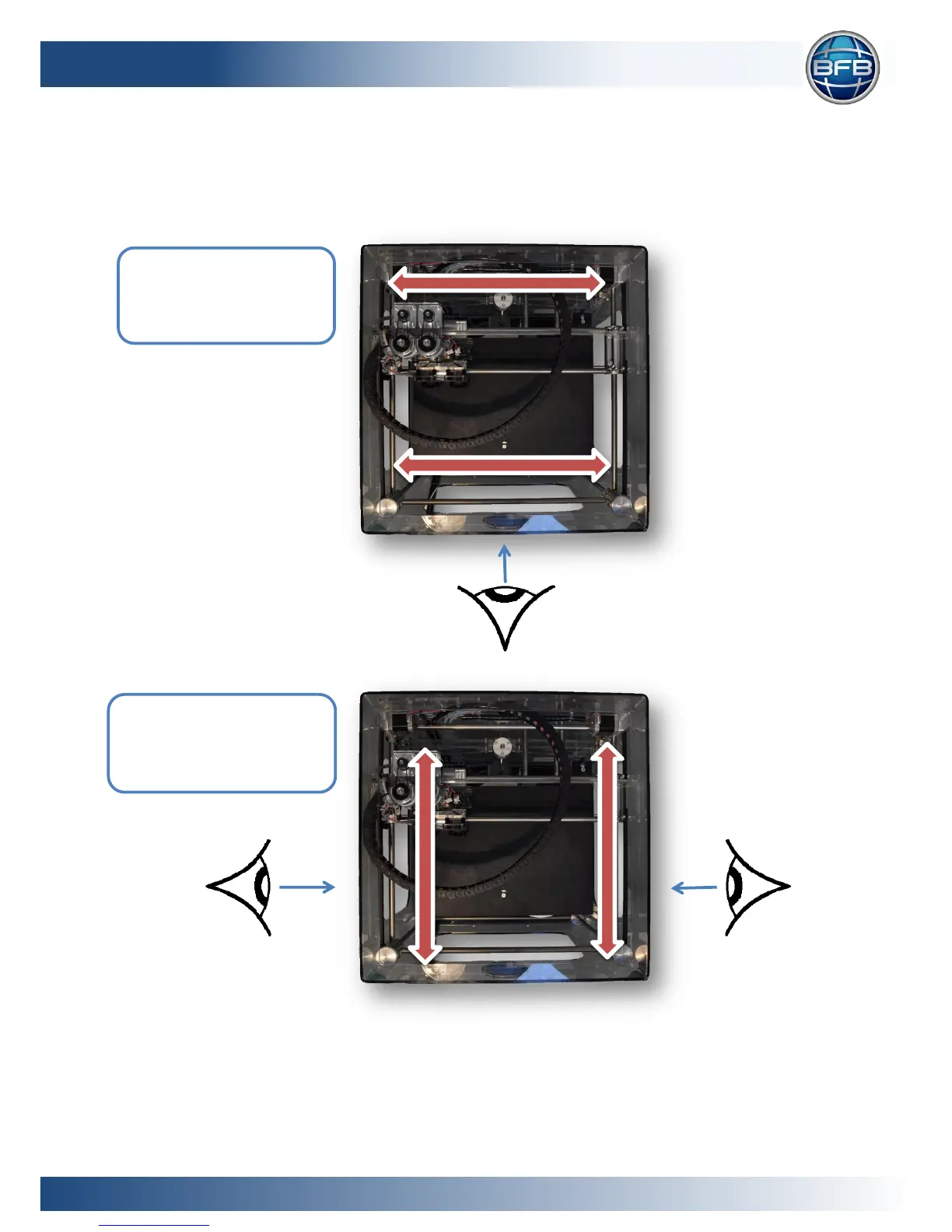

PHOTOGRAPHS TAKEN FROM ABOVE
View the movements
in the X axis from the
front of the machine.
View the movements
in the Y axis from the
sides of the machine.
BACK
BACK
FRONT
FRONT
