3M Edge eg5 - Communicating and Downloading Data

Docking
Communicating & downloading data
21
Docking
Communicating & downloading data
By using your docking station, USB cable, software, and your dosimeter, you can quickly communicate
between the software and the dosimeter. There are two methods for communicating which are:
 Send setup data: Enables you to configure your set-up parameters in Detection Management
Software (DMS) and download these parameters to the Edge.
 Retrieve data: you have the capability to retrieve the data from the dosimeter into DMS in order to
view and analyze your studies in DMS’s charts, graphs, and reporting functionality.
 How to connect your dosimeter to the computer
1. Dock the dosimeter on the EdgeDock1 (or 5) and turn on the dosimeter by pressing the on/off
enter button.
 NOTE: See charging your dosimeter for more information.
2. Plug the USB cable into the computer. (See “A” in Figure 3-4).
3. Plug the opposite end into the docking station (See “B” and “C”).
 NOTE: The docking station will be powered through the computer; thus, you do not need to plug
in the charger adapter. If you wish to charge the dosimeter, plug in the charger adapter.

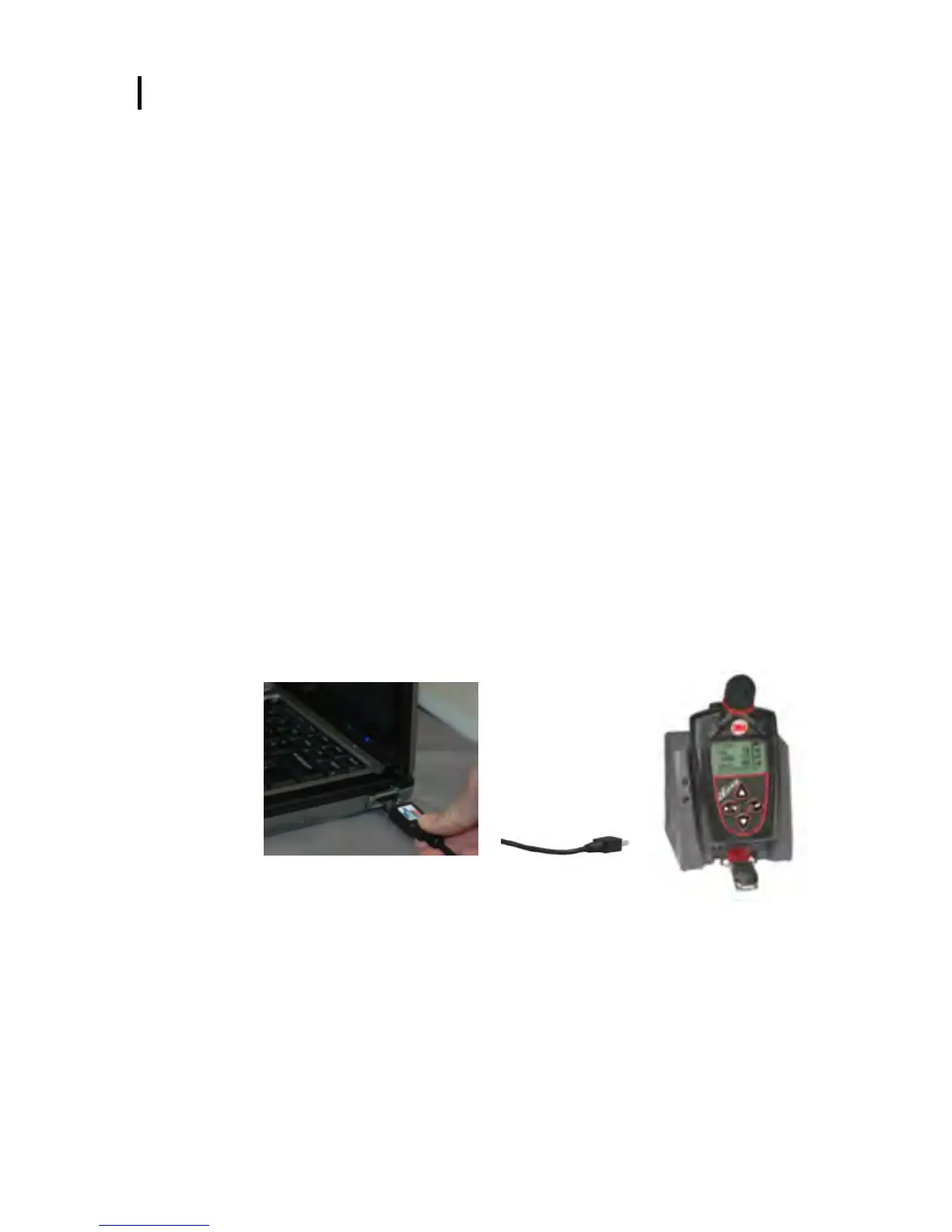

Figure 3-4: Communicating - connecting a docked Edge to a pc
A
B
C
