ACS 160 User’s Manual 9

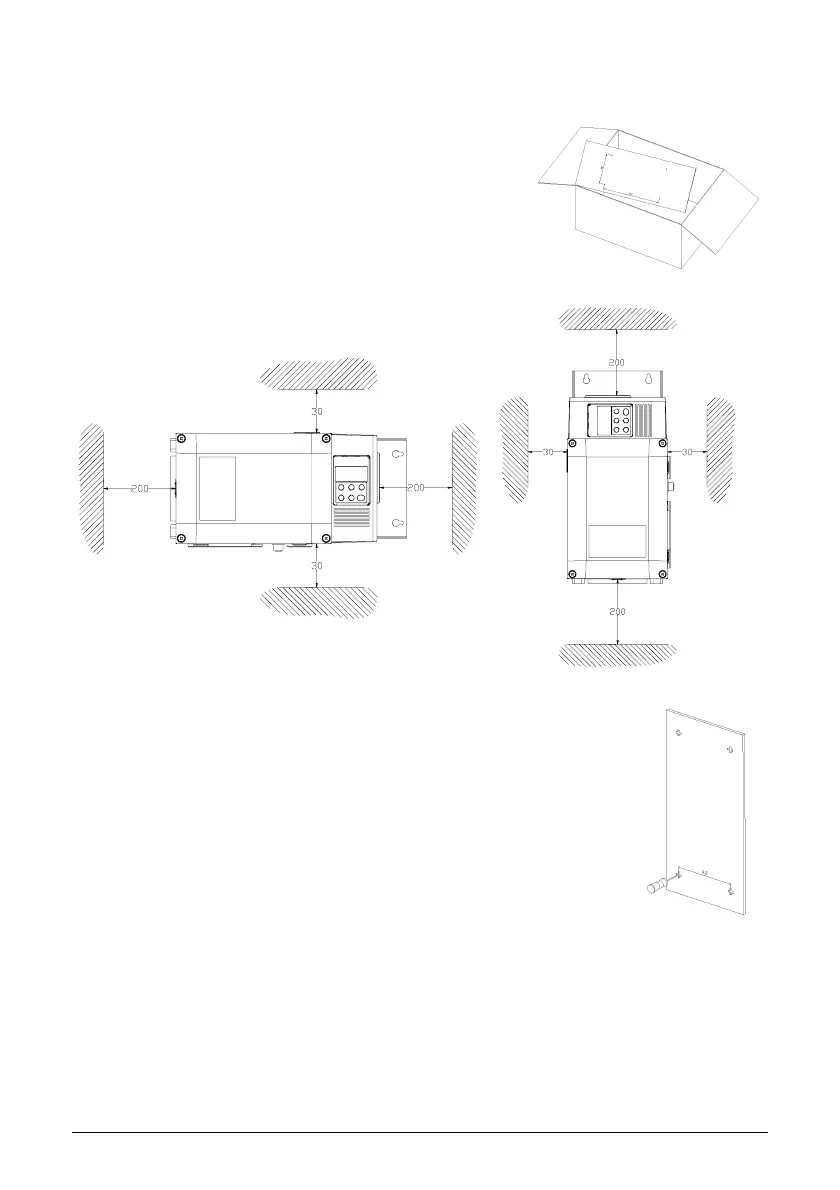

F Mounting the ACS 160 on the Wall
4. Position the ACS 160 onto the fixings and securely tighten all four corners.
Note! Only lift the ACS 160 by its metal chassis.
A Wall Mounting Template is included in the box.
The ACS 160 should be mounted on a solid surface. Ensure minimum air
flow gaps of 200 mm (7.9 in) and 30 mm (1.18 in) as shown in the figure
above.
1. Using the mounting template in the package, mark the position of the
fixing holes.
2. Drill the holes.
3. Screw in the four screws or affix the nuts and bolts (depending on the
mounting surface).
