ACS 160 User’s Manual 29
Control Modes
The very first time the drive is powered up, it is controlled from the Control Terminals (remote control,
REM). The ACS 160 is controlled from the control panel when the drive is in local control (LOC).
Switch to local control (LOC) by pressing and holding the MENU and ENTER buttons down
simultaneously until first Loc or later LCr is displayed:
• If the buttons are released while Loc is displayed, the panel frequency reference is set to the
current external reference and the drive is stopped.
• When LCr is displayed, the current run/stop status and the frequency reference are copied from
the user I/O.
Start and stop the drive by pressing the START/STOP button.
Change the shaft direction by pressing the REVERSE button (parameter 1003 must be set to
REQUEST).
Switch back to remote control (REM) by pressing and holding the MENU and ENTER buttons down
simultaneously until rE is displayed.
Shaft Direction

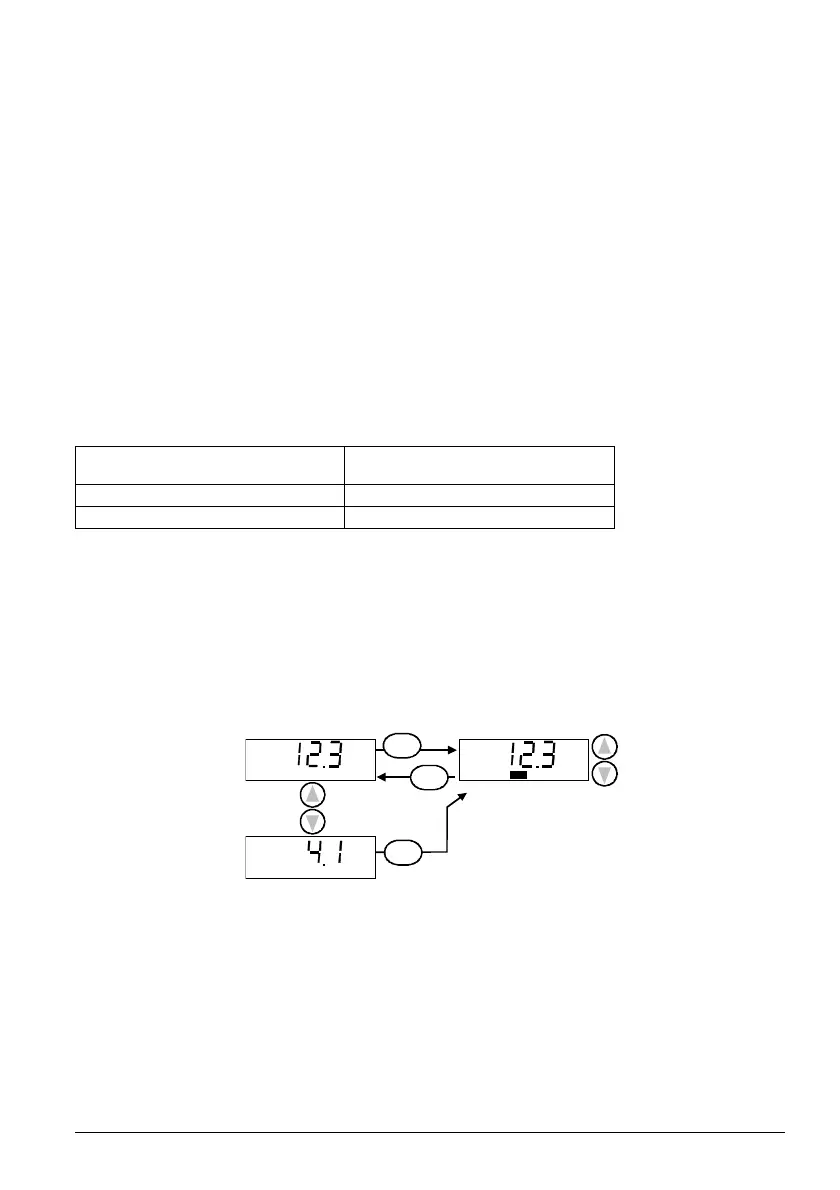

Output Display
When the control panel is powered up, the panel displays the actual output frequency. Whenever the
MENU button is pressed and held, the control panel resumes this OUTPUT display.
To toggle between output frequency and output current, press the UP or DOWN button.
To set the output frequency, press ENTER. Pressing the UP/DOWN buttons changes the output
immediately. Press ENTER again to return to OUTPUT display.
FWD / REV Visible • Shaft direction is forward / reverse
• Drive is running and at set point
FWD / REV Blinking rapidly Drive is accelerating / decelerating.
FWD / REV Blinking slowly Drive is stopped.
OUTPUT
Hz
SET
OUTPUT
Hz
OUTPUT
A
ENTER
ENTER
ENTER
LOC
LOC
LOC
