12 ACS 160 User’s Manual
I Cable Entries
Cable glands of various sizes will be needed for the following cable entries.

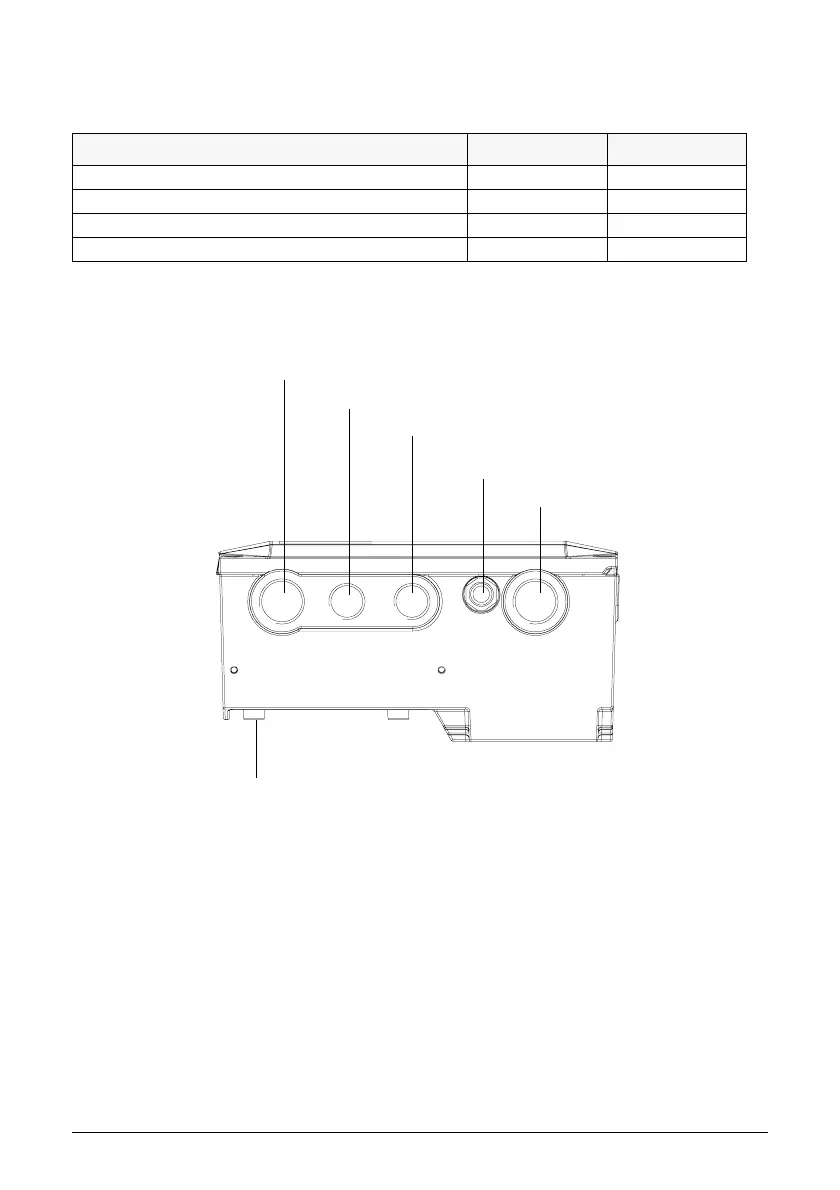

Description Thread US Types
Motor cable entry (wall mounting) M25 3/4” NPT plug
Relay output cable entry M20 1/2” NPT plug
Small signal I/O cable entry M20 1/2” NPT plug
Mains cable entry M25 3/4” NPT plug
Motor cable entry (motor mounting)
Motor cable entry
Relay output cable entry
Small signal I/O cable entry
Control panel / Serial link connector
Mains cable entry
