ACS 160 User’s Manual 35
Application Macro Factory (1)
This macro is intended for applications where there is NO control panel available. It provides a
general purpose 3-wire I/O configuration.
The value of parameter 9902 is 0 (
FACTORY). DI 4 is connected.

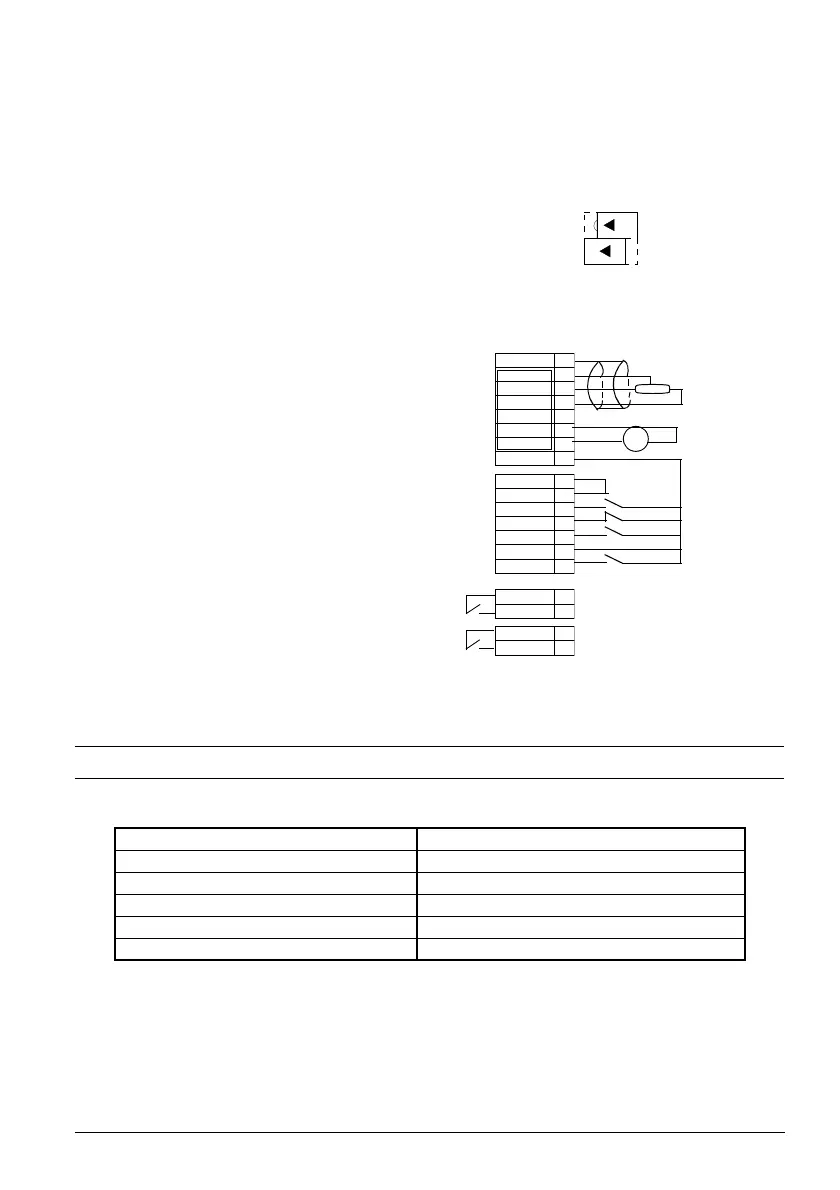

Connection example:
*Note! DI 4 is used to configure ACS 160. It is read only once when power is connected. All
parameters marked with * are determined by the DI4 input.
Note! Stop input (DI2) deactivated: panel START/STOP button interlocked (local).
Factory (1) default parameter values:
Input signals Output signals DIP switch
• Start, stop and direction
(DI1,2,3)
• An. output AO:
Frequency
• Analogue reference (AI1) • Relay output 1: Fault
• Ramp pair 1/2 selection (DI5) • Relay output 2: Running
* 1001 EXT 1 COMMANDS 4 (DI1P, 2P, 3) * 1201 CONST SPEED SEL 0 (NOT SEL)
1002
EXT 2 COMMANDS 0 (NOT SEL) 1402 RELAY OUTPUT 22 (RUN)
1003
DIRECTION 3 (REQUEST) 1601 RUN ENABLE 0 (NOT SEL)
1102
EXT1/EXT2 SEL 6 (EXT1) 1604 FAULT RESET SEL 6 (START/STOP)
1103
EXT REF1 SELECT 1 (AI1) 2105 PREMAGN SEL 0 (NOT SEL)
1106
EXT REF2 SELECT 0 (KEYPAD) 2201 ACC/DEC 1/2 SEL 5 (DI5)
0 - 10 V
0(4) -10mA
AI1:
AI2:
NO
NO
External Reference 1: 0...10 V <=> 0...50 Hz
Reference voltage 10 VDC
Not used
Output frequency 0...20 mA <=> 0...50 Hz
+24 VDC
Momentary activation with DI2 activated: Start
Momentary deactivation: Stop
Fwd/Rev: activate to reverse rotation direction
Has to be connected!*
Ramp pair selection. Activate to select ramp pair 2.
Relay output 1, programmable
Default operation: Fault => open
Relay output 2, programmable
Default operation: Running => closed
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
SCR
AI1
AGND
+10V
AI2
AGND
AO1
AGND
+24V
DCOM
DI1
DI2
DI3
DI4
DI5
RO1B
RO2A
RO2B
RO1A
mA
