ACS 160 User’s Manual 55
Group 99: Start-up Data
The Start-up Data parameters are a special set of parameters for setting up the ACS 160 and for
entering motor information.

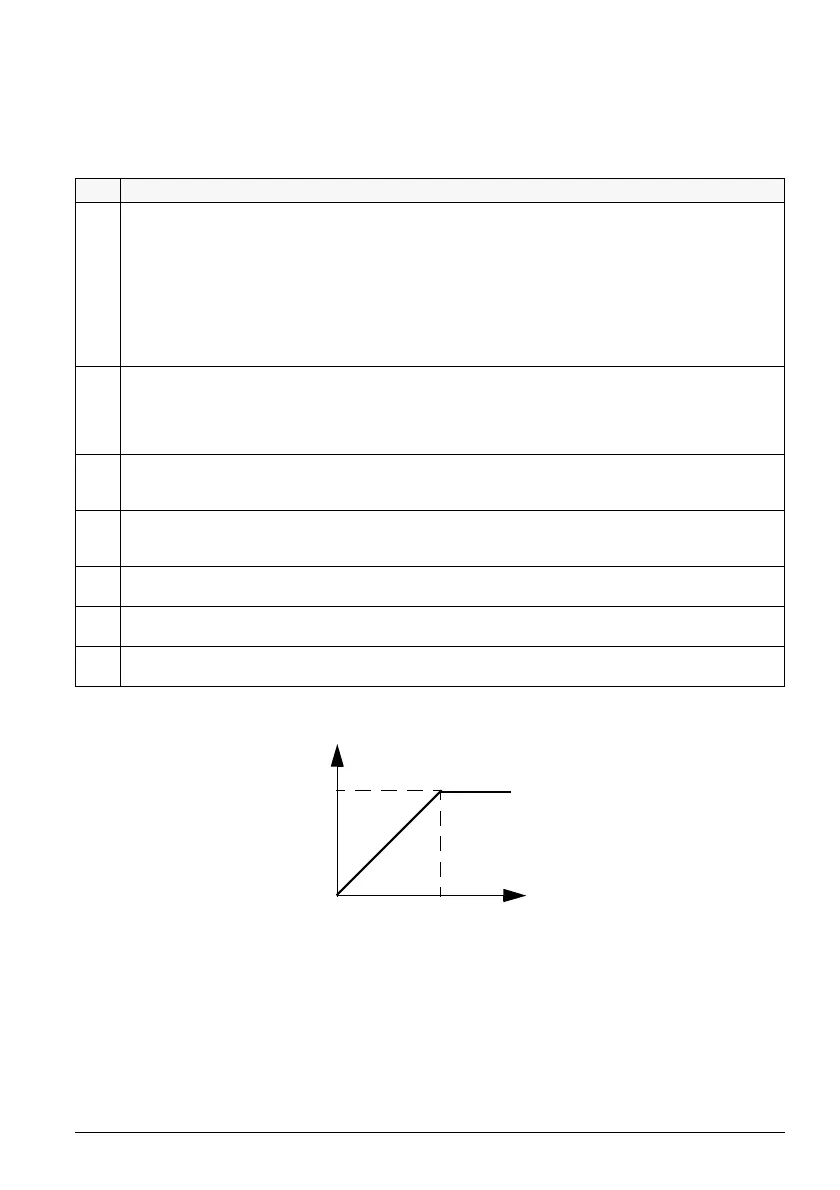

Figure 4 Output voltage as a function of output frequency.
Code Description
9902 APPLIC MACRO
Application macro selection. This parameter is used to select the Application Macro which will configure the
ACS 160 for a particular application. Refer to Application Macros, for a list and description of available
Application Macros.
9905 MOTOR NOM VOLT
Nominal motor voltage from motor rating plate. This parameter sets the maximum output voltage supplied to
motor by ACS 160.
MOTOR NOM FREQ sets the frequency at which output voltage is equal to the MOTOR NOM
VOLT. The ACS 160 cannot supply the motor with a voltage greater than the mains voltage.
See Figure 4.
9906 MOTOR NOM CURR
Nominal motor current from rating plate. The allowed range is 0.5 · I
N
... 1.5 · I
N
. Where I
N
is the nominal
current of the ACS 160.
9907 MOTOR NOM FREQ
Nominal motor frequency from rating plate (field weakening point).
See Figure 4.
9908 MOTOR NOM SPEED
Nominal motor speed from rating plate.
9909 MOTOR NOM POWER
Nominal motor power from rating plate.
9910 MOTOR COS PHI
Nominal motor cos phi from rating plate.
0 = FACTORY 2 = 3-WIRE 4 = MOTOR POT 6 = PID CONTROL 8-13 = (reserved)
1 =
ABB STANDARD 3 = ALTERNATE 5 = HAND/AUTO 7 = PREMAGN 14 = POSITIONING
Output voltage
Output frequency
MOTOR
NOM
VOLT
MOTOR
NOM
FREQ
