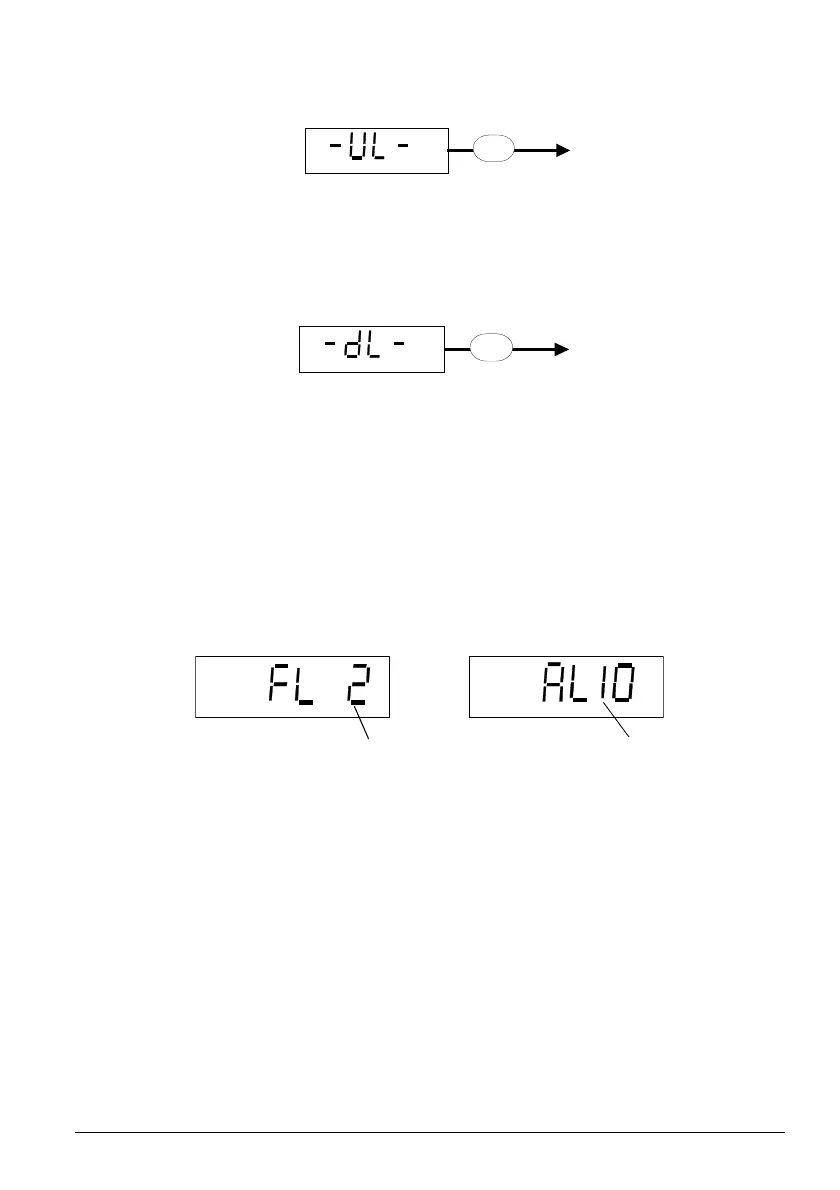

Copy parameters from drive to panel (upload)
Note! Drive must be stopped and in local control. Parameter 1602
PARAMETER LOCK must be set to 1
(
OPEN).
Copy parameters from panel to drive (download)
Note! Drive must be stopped and in local control. Parameter 1602
PARAMETER LOCK must be set to 1
(
OPEN).
Diagnostic Displays
When a fault is active the relevant fault message flashes in the panel display.
When an alarm is active the relevant alarm message is shown in the panel display. Alarms 1-7 arise
from button operation.
The alarm and fault messages disappear when MENU, ENTER or the arrow buttons of control panel
are pressed. The message will reappear after a few seconds if the keypad is not touched and alarm
or fault is still active.
Refer to Diagnostics section for complete list of alarms and faults.
Resetting the Drive from the Control Panel
To reset a fault press the START/STOP button.
Caution! Resetting the fault may start the drive when in remote control.
Some faults can only be reset by turning power off. Refer to section on Diagnostics
Caution! Turning the power on again may start the drive immediately.
Press & hold
MENU
ENTER
Press & hold
MENU
ENTER
fault code alarm code
