Installation and start-up 11
Installation and start-up
What this chapter contains
The chapter describes how to install and start up the Assistant control panel for the
first time.
Installation
You can attach the control panel directly to
the drive or use a separate mounting kit
(for example, for cabinet door mounting).

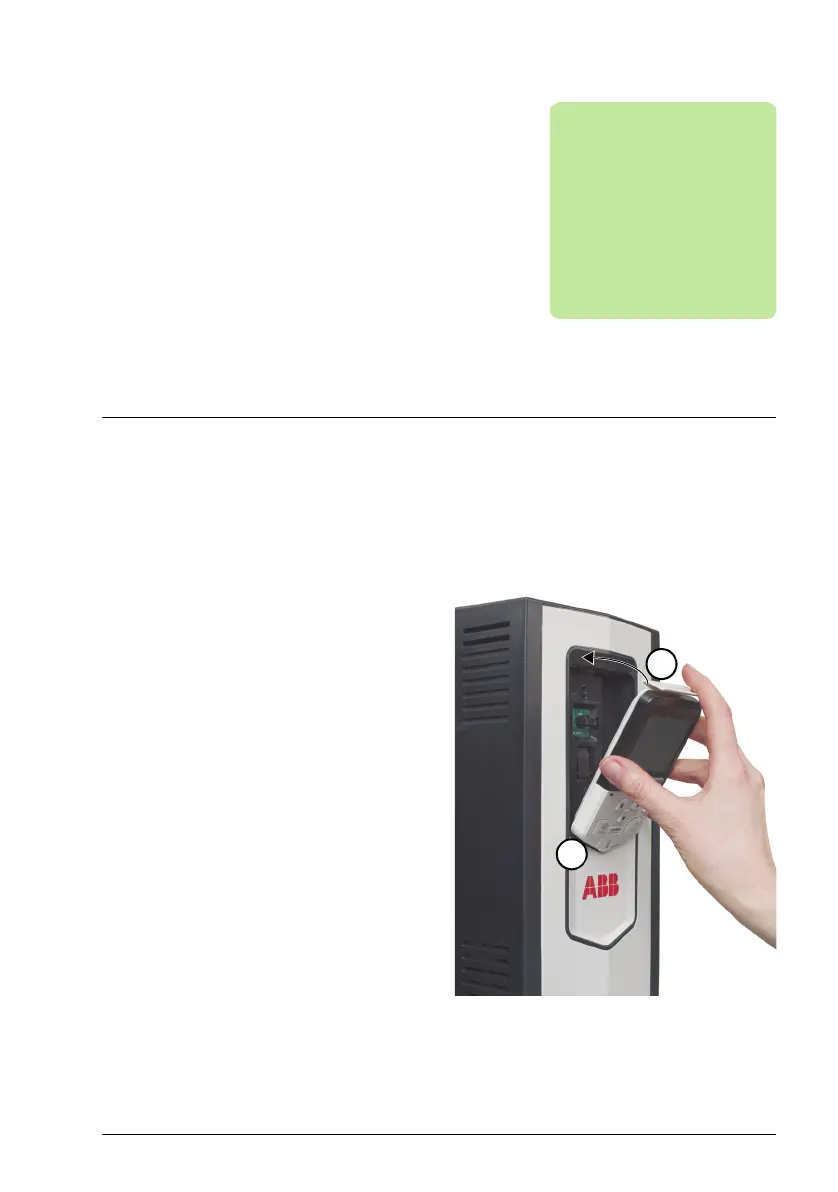

To attach the control panel,
1. place its bottom end into the bottom of
the slot in the drive (A),
2. pivot the control panel and push the
upper part (B) until you hear a click.
To detach the control panel,
1. release the control panel by pressing
the clip (B),
2. pull the upper end of the control panel
out of the slot in the drive.
