ABB ACS-AP Series User Manual

56 Technical data

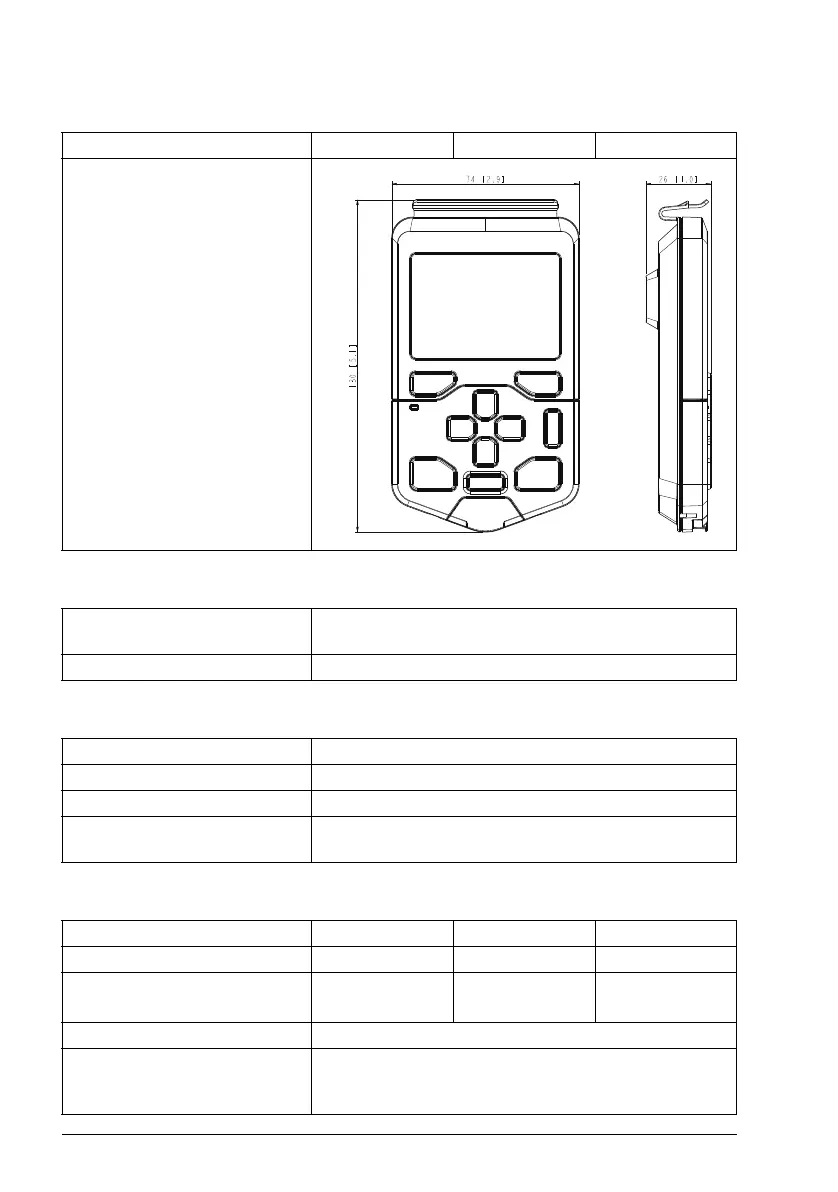

Dimensions and weight
Degrees of protection
Materials
Environmental limits
Weight 130 g
Height, width and depth
mm [in.]
Degree of protection, attached to
a drive
IP55
Separately IP20
Enclosure PCB/ABS
Packaging Cardboard
Screen Polycarbonate
Disposal Do not dispose the control panel with municipal waste.
Check local regulations for disposal of electronic products.
Operation Storage Transportation
Installation site altitude 4000 m (13123 ft.) - -
Air temperature -20 °C to +55 °C
(-4 °F to 131 °F)
-40 °C to +70 °C
(-40 °F to 158 °F)
-40 °C to +70 °C
(-40 °F to 158 °F)
Relative humidity 95% (non-condensing)
Contamination levels
(IEC 60721-3-3, IEC 60721-3-2,
IEC 60721-1-3-1)
3C3
